Figure 1 is an example
of the detail window for the memory configuration check (in this example,
an error condition is not shown).

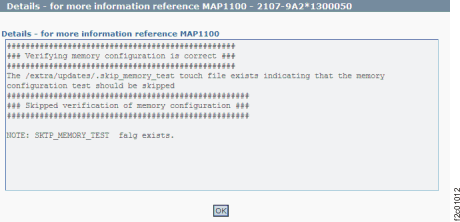

Figure 1. Window: Memory
configuration details
Description: Verifies that there is no deconfigured
memory on any of the systems under the selected SF. Displays the WARNING
in the main panel in two cases:
When there is deconfigured memory on any of the systems in
the selected SF.
When the system state is in a state where the memory configuration
check cannot be run.
Action: Depending on the previous case, do the appropriate
action:
For the deconfigured memory case, display and repair any related
open serviceable events. See MAP4070 CEC memory problem.
