Model 983 all-flash
The table in this topic shows the point-to-point connections for SAS cables on a Model 983.
SAS cabling table
Table 1 shows a summary of SAS cabling.
Note: Location designators are labeled as link in Table 1.
| From I/O enclosure |
Link | To Flash enclosure |
|---|---|---|
| 1G3-C1-T1 | 10A1 | I1-F03-P1-C1-T1 |
| 1G3-C1-T2 | 10A2 | I1-F03-P1-C2-T1 |
| 1G3-C1-T3 | 10B1 | I1-F04-P1-C1-T1 |
| 1G3-C1-T4 | 10B2 | I1-F04-P1-C2-T1 |
| 1G4-C8-T1 | 10a1 | I1-F03-P1-C1-T2 |
| 1G4-C8-T2 | 10a2 | I1-F03-P1-C2-T2 |
| 1G4-C8-T3 | 10b1 | I1-F04-P1-C1-T2 |
| 1G4-C8-T4 | 10b2 | I1-F04-P1-C2-T2 |
Flash SAS cables
- SAS cables and connectors are identified with two different color codes and a location designator:
- A colored band, corresponding to the color code of the DA pair, is found on each end of the cable near the connector. These color codes are shown in Figure 1. DA Pair 10 color code is shown in Figure 2.
- The connector is color coded to help prevent cross-cabling at the SAS flash enclosure enclosure services module (ESM) and I/O enclosure adapter (PCIe and SAS device).

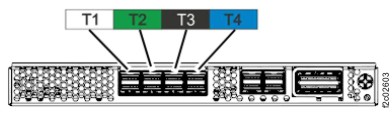

- I/O enclosure adapter (PCIe and SAS device) connectors always appear in the following
order:
as shown in Figure 3 and Figure 4.white (T1), green (T2), black (T3), and blue (T4) - A black or white label at each end of the cable shows a location designator (for example, 10A1). Both ends of the cable have the same location designator and DA pair color code (example: gray). However, the connector at each end of the same cable usually does NOT have the same color code.
- The following alternating color scheme is the same for all Flash SAS cables, and is independent
of the DA pair color code:
- Connectors on cables that attach to I1-1G3-P1-C1-Tx or I1-1G3-P1-C7-Tx have white labels with black text.
- Connectors on cables that attach to I1-1G4-P1-C2-Tx or I1-1G4-P1-C8-Tx have black labels with white text.

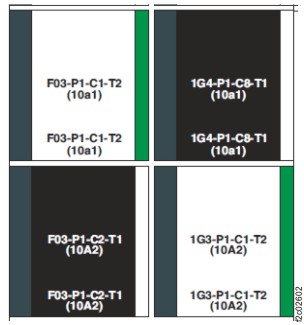

An example of this showing both ends of two SAS cables to an enclosure is shown in Figure 2.
- Location designators are in the form CTP, where:
- C is the device adapter pair (10).
- T is the port pair on the device adapter (A, B, a, b) (uppercase for left ESM, lowercase for right device adapter in pair).
- P is the logical position of the downstream SAS expander card.
