CEC enclosure part numbers, Model 951

Information about CEC enclosure parts is listed below. Use Table 1 as a directory.
Note: The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts-ordering system recognizes all valid part numbers and automatically substitutes an available part number as needed.
Table 1. Start here CEC enclosure parts (Model 951)
Part name Figure
CEC enclosure cables, rear of rack Figure 5
CEC enclosure control panel Figure 1
CEC enclosure disk drive Figure 2
CEC enclosure disk drive backplane assembly Figure 2
CEC enclosure fan Figure 1
Figure 2
CEC enclosure I/O backplane assembly Figure 3
Figure 4
CEC enclosure memory DIMM Figure 2
CEC enclosure PCIe four port card Figure 3
CEC enclosure PCIe single port card Figure 3
CEC enclosure PCIe single port card (slot 5) Figure 3
CEC enclosure power supply Figure 3
CEC enclosure RIO card Figure 3
CEC enclosure service processor card Figure 3
CEC enclosure service processor card time of day battery Figure 3
CEC enclosure system processor backplane assembly Figure 2
CEC enclosure system processor card Figure 2
CEC enclosure system processor dummy card Figure 2
CEC enclosure system processor voltage card Figure 1
CEC enclosure system processor voltage dummy card Figure 1
CEC enclosure VPD card Figure 3
CEC enclosure VPD pass-through card Figure 3
Figure 1. CEC enclosure parts (front view)
CEC enclosure parts (front view)
Figure 2. CEC enclosure parts (front view), continued
CEC enclosure parts (front view)
Table 2. CEC enclosure parts (front view) (Model 951)
Index Part name CCIN1 Part number
  CEC enclosure chassis2   39J5152
1 CEC enclosure fan   39J0859
2 Not used in Model 951
3 Not used in Model 951
4 CEC enclosure control panel   17P9228
5 CEC enclosure system processor voltage card   44V5705
5 CEC enclosure system processor voltage dummy card   39J5159
6 CEC enclosure disk drive backplane assembly 293C 10N9617
7 CEC enclosure disk drive, 146 GB, 15 K RPM   42R4234
8 CEC enclosure system processor backplane assembly 27B0 03N6902
9 CEC enclosure CEC enclosure system processor card, 5.0 GHz 2-way (Model 951 only)
Important: To prevent errors during power up, both system processor cards in a CEC enclosure must have the same CCIN. The firmware detects the CCIN and makes adjustments to the speed and voltages for the pair of cards.
 53E9 46K6621
9 CEC enclosure memory DIMM (2 GB) 31B7 45D6519
CEC enclosure memory DIMM (4 GB) 31B9 45D6527
CEC enclosure memory DIMM (8 GB)1 31B3 45D1787
CEC enclosure memory DIMM (8 GB)1 31BA 45D6529
Notes:
  1. Important, read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable.

    When you order a part number reported in a serviceable event or call home record, check if the parts ordering system has a conditional substitute for DS8000®. There are some exceptions where the part number on the DS8000 FRU part number is not the same one that is reported and called home. The part number reported and called home may be the original eServer™ P/N which may have firmware that is not appropriate for DS8000. You must order the DS8000 FRU part number to ensure the correct firmware is present.

  2. The CEC enclosure chassis is a special order item. The chassis to be replaced has bar code labels with the specific MTMS (machine type model serial number) information. Contact next level of support to determine if the label can be moved to the new chassis. The MTMS should stay the same as there is not an HMC menu option to change it. The MTMS on the bar code label must match the MTMS in the code, as the CEC enclosure serial number is used in serviceable event FRU list and exchange part lists.
Figure 3. CEC enclosure parts (rear view)
CEC enclosure parts (rear view)
Table 3. CEC enclosure parts (rear view) (Model 951)
Index Part name CCIN1 Part number
1 CEC enclosure PCIe single port card CROT 45W5687
2 CEC enclosure PCIe single port card CROT 45W5687
3 CEC enclosure PCIe single port card CROT 45W5687
4 Not used
5 CEC enclosure PCIe single port card (slot 5) CROF 45W5689
6 CEC enclosure RIO card 1800 46K7119
7 CEC enclosure PCIe four port card 63C0 45W5691
8 CEC enclosure VPD card   46K7846
9 CEC enclosure VPD pass-through card (two 1Gb Ethernet ports)   42R6775
9 CEC enclosure VPD pass-through card (four 1Gb Ethernet ports)   42R7000
10 CEC enclosure power supply   44V7309
11 CEC enclosure service processor card 294E 45W5696
11 CEC enclosure service processor card battery   16G8095
12 CEC enclosure I/O backplane assembly 293B 74Y2473
Note:
  1. Important, read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable.

    When you order a part number reported in a serviceable event or call home record, check if the parts ordering system has a conditional substitute for DS8000. There are some exceptions where the part number on the DS8000 FRU part number is not the same one that is reported and called home. The part number reported and called home might be the original eServer part number, which might have firmware that is not appropriate for DS8000. You must order the DS8000 FRU part number to ensure that the correct firmware is present.
Figure 4. USB ports cover and screw
Install plastic covers on USB ports
Table 4. CEC enclosure parts (rear view) (Model 951)
Index Part name Part number
1 USB port metal cover 45W9519
2 Screw, M2 87G4265
Figure 5. CEC enclosure cables, rear view
CEC enclosure cables, rear view
Table 5. CEC enclosure parts, cables (rear view) (Model 951)
Index Part name Part number
1 VPD card See Table 3
2
Ethernet cable (upper CEC enclosure)
Ethernet cable (lower CEC enclosure)
45W2360
45W2361
3
Ethernet cable (upper CEC enclosure)
Ethernet cable (lower CEC enclosure)
45W2364
45W2365
4 not used
5 not used
6 Power input cable
7 Power input cable
8 not used
9 not used
10 not used
11 not used
12
Ethernet cable (upper CEC enclosure)
Ethernet cable (lower CEC enclosure)
45W2362
45W2363
13
Ethernet cable (upper CEC enclosure)
Ethernet cable (lower CEC enclosure)
45W2358
45W2359
14
15
 SPCN See Section-1 SPCN cables for two, four, and eight I/O enclosures
16 not used
17
18
19
20
 PCIe cable See Section-2 PCIe cables for two, four, and eight I/O enclosures
21
22
 RIO cable See Section-3 RIO cables
23
24
25
26
 PCIe cable See Section-2 PCIe cables for two, four, and eight I/O enclosures

Section-1 SPCN cables for two, four, and eight I/O enclosures

The following figure and table are for Model 951 with two I/O enclosures.

Figure 6. Model 951, two I/O enclosures
Model 951 SPCN cable labels with two I/O enclosures
Table 6. SPCN Cabling (Model 951 with two I/O enclosures)
From To FRU P/N
R1-XC1-P1-C11-T1 (1B3) R1-XI3-P1-C7-T3 45W1941
(1B3) R1-XI3-P1-C7-T4 R1-XC1-P1-C11-T2 45W1941

R1-XC2-P1-C11-T1 (1B4) R1-XI4-P1-C7-T3 45W1941
(1B4) R1-XI4-P1-C7-T4 R1-XC2-P1-C11-T2 45W1941

The following figure and table are for Model 951 with four I/O enclosures.

Figure 7. Model 951, four I/O enclosures

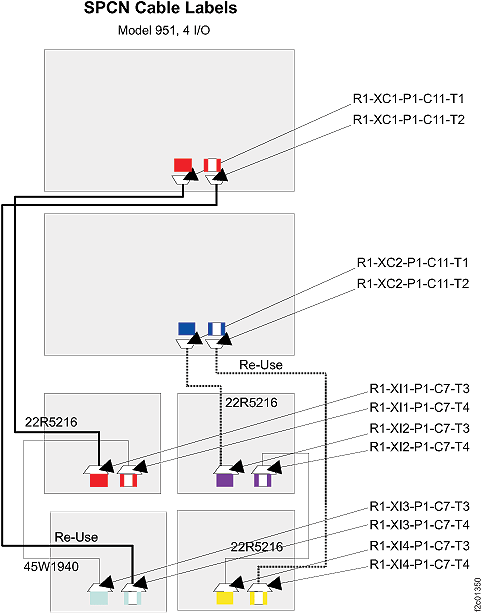

Model 951 SPCN cable labels with four I/O enclosures
Table 7. SPCN Cabling (Model 951 with four I/O enclosures)
From To FRU P/N
R1-XC1-P1-C11-T1 (1B1) R1-XI1-P1-C7-T3 22R5216
(1B1) R1-XI1-P1-C7-T4 (1B3) R1-XI3-P1-C7-T3 45W1940
(1B3) R1-XI3-P1-C7-T4 R1-XC1-P1-C11-T2 45W1941

R1-XC2-P1-C11-T1 (1B2) R1-XI2-P1-C7-T3 22R5216
(1B2) R1-XI2-P1-C7-T4 (1B4) R1-XI4-P1-C7-T3 22R5216
(1B4) R1-XI4-P1-C7-T4 R1-XC2-P1-C11-T2 45W1941

The following figure and table are for Model 951 with eight I/O enclosures.

Figure 8. Model 951, eight I/O enclosures
Model 951 SPCN cable labels with eight I/O enclosures
Table 8. SPCN Cabling (Model 951 with eight I/O enclosures)
From To FRU P/N
R1-XC1-P1-C11-T1 (1B1) R1-XI1-P1-C7-T3 22R5216
(1B1) R1-XI1-P1-C7-T4 (1B3) R1-XI3-P1-C7-T3 45W1940
(1B3) R1-XI3-P1-C7-T4 (2B3) R2-XI3-P1-C7-T4 22R5218
(2B3) R2-XI3-P1-C7-T3 (2B1) R2-XI1-P1-C7-T4 45W1940
(2B1) R2-XI1-P1-C7-T3 R1-XC1-P1-C11-T2 22R5218

R1-XC2-P1-C11-T1 (1B2) R1-XI2-P1-C7-T3 22R5216
(1B2) R1-XI2-P1-C7-T4 (1B4) R1-XI4-P1-C7-T3 22R5216
(1B4) R1-XI4-P1-C7-T4 (2B4) R2-XI4-P1-C7-T4 22R5218
(2B4) R2-XI4-P1-C7-T3 (2B2) R2-XI2-P1-C7-T4 22R5216
(2B2) R2-XI2-P1-C7-T3 R1-XC2-P1-C11-T2 22R5218

Section-2 PCIe cables for two, four, and eight I/O enclosures

The following figure and table are for Model 951 with two I/O enclosures.

Figure 9. Model 951, two I/O enclosures

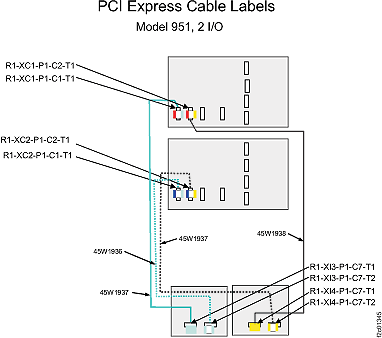

PCIe cable labels, Model 951 with two I/O enclosures
Table 9. PCIe Cabling (Model 951 with two I/O enclosures)
From CEC R1-XC1 To Rack 1 I/O Enclosure FRU P/N
R1-XC1-P1-C1-T1 (1B3) R1-XI3-P1-C7-T1 45W1937
R1-XC1-P1-C2-T1 (1B4) R1-XI4-P1-C7-T1 45W1938
From CEC R1-XC2 To Rack 1 I/O Enclosure FRU P/N
R1-XC2-P1-C1-T1 (1B3) R1-XI3-P1-C7-T2 45W1936
R1-XC2-P1-C2-T1 (1B4) R1-XI4-P1-C7-T2 45W1937

The following figure and table are for Model 951 with four I/O enclosures.

Figure 10. Model 951, four I/O enclosures

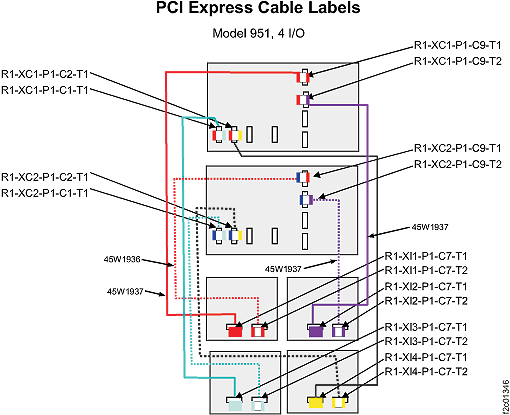

PCIe cable labels, Model 951 with four I/O enclosures
Table 10. PCIe Cabling (Model 951 with four I/O enclosures)
From CEC R1-XC1 To Rack 1 I/O Enclosure Cable FRU P/N
R1-XC1-P1-C9-T1 (1B1) R1-XI1-P1-C7-T1 45W1937
R1-XC1-P1-C9-T2 (1B2) R1-XI2-P1-C7-T1 45W1937
R1-XC1-P1-C1-T1 (1B3) R1-XI3-P1-C7-T1 45W1937
R1-XC1-P1-C2-T1 (1B4) R1-XI4-P1-C7-T1 45W1938
From CEC R1-XC2 To Rack 1 I/O Enclosure FRU P/N
R1-XC2-P1-C9-T1 (1B1) R1-XI1-P1-C7-T2 45W1936
R1-XC2-P1-C9-T2 (1B2) R1-XI2-P1-C7-T2 45W1937
R1-XC2-P1-C1-T1 (1B3) R1-XI3-P1-C7-T2 45W1936
R1-XC2-P1-C2-T1 (1B4) R1-XI4-P1-C7-T2 45W1937

The following figure and table are for Model 951 with eight I/O enclosures.

Figure 11. Model 951, eight I/O enclosures
PCIe cable labels, Model 951 with eight I/O enclosures
Table 11. PCIe Cabling (Model 951 with eight I/O enclosures)
From CEC R1-XC1 To Rack 1 I/O Enclosure Cable FRU P/N
R1-XC1-P1-C9-T1 (1B1) R1-XI1-P1-C7-T1 45W1937
R1-XC1-P1-C9-T2 (1B2) R1-XI2-P1-C7-T1 45W1937
R1-XC1-P1-C1-T1 (1B3) R1-XI3-P1-C7-T1 45W1937
R1-XC1-P1-C2-T1 (1B4) R1-XI4-P1-C7-T1 45W1938
From CEC R1-XC1 To Rack 2 I/O Enclosure Cable FRU P/N
R1-XC1-P1-C9-T3 (2B1) R2-XI1-P1-C7-T1 45W1939
R1-XC1-P1-C9-T4 (2B2) R2-XI2-P1-C7-T1 45W1939
R1-XC1-P1-C3-T1 (2B3) R2-XI3-P1-C7-T1 45W1939
R1-XC1-P1-C5-T1 (2B4) R2-XI4-P1-C7-T1 45W1939
From CEC R1-XC2 To Rack 1 I/O Enclosure Cable FRU P/N
R1-XC2-P1-C9-T1 (1B1) R1-XI1-P1-C7-T2 45W1936
R1-XC2-P1-C9-T2 (1B2) R1-XI2-P1-C7-T2 45W1937
R1-XC2-P1-C1-T1 (1B3) R1-XI3-P1-C7-T2 45W1936
R1-XC2-P1-C2-T1 (1B4) R1-XI4-P1-C7-T2 45W1937
From CEC R1-XC2 To Rack 2 I/O Enclosure Cable FRU P/N
R1-XC2-P1-C9-T3 (2B1) R2-XI1-P1-C7-T2 45W1939
R1-XC2-P1-C9-T4 (2B2) R2-XI2-P1-C7-T2 45W1939
R1-XC2-P1-C3-T1 (2B3) R2-XI3-P1-C7-T2 45W1939
R1-XC2-P1-C5-T1 (2B4) R2-XI4-P1-C7-T2 45W1939

Section-3 RIO cables

The following figure and table are for Model 951 with two and four I/O enclosures.

Figure 12. RIO cable labels

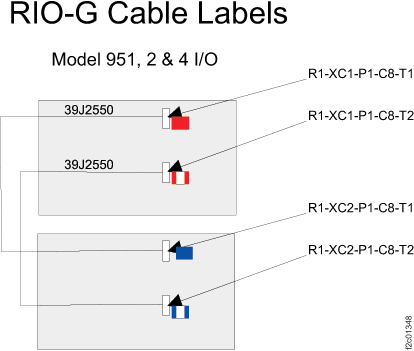

Model 951 RIO-G cable labels, two and four I/O enclosures
Table 12. RIO Cabling (Model 951)
From To FRU P/N
R1-XC1-P1-C8-T1 R1-XC2-P1-C8-T1 (0.6 meter)
39J25501
R1-XC1-P1-C8-T1 R1-XC2-P1-C8-T1 (1.2 meter)
44V51401
R1-XC1-P1-C8-T2 R1-XC2-P1-C8-T2 (0.6 meter)
39J25501
R1-XC1-P1-C8-T2 R1-XC2-P1-C8-T2 (1.2 meter)
44V51401
Notes:
  1. Rack-1 ships with a matched pair of 0.6 meter or 1.2 meter RIO cables. The 0.6 meter and 1.2 meter RIO cables must not be intermixed. You must visually inspect the existing RIO cable FRU P/N labels and then order the same FRU P/N.
