CEC enclosure part numbers, Models 982, 988

Information about CEC enclosure parts is listed. Use Table 1 as a directory.
Note: The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts-ordering system recognizes all valid part numbers and automatically substitutes an available part number as needed.
Table 1. Start here, CEC enclosure parts (Models 982, 988)
CEC enclosure part name Figure Table
Cables (external) Figure 3, Figure 5 Table 6, Table 7
Control panel Figure 1 Table 2
Disk drive Figure 1 Table 2
Disk drive backplane Figure 4 Table 5
Ethernet adapter Figure 3 Table 4
Fan assembly, front Figure 1 Table 2
Fan assembly, internal Figure 4 Table 5
I/O backplane Figure 2 Table 3
I/O voltage regulator module (VRM) Figure 2 Table 3
I2C interface card assembly Figure 3 Table 4
Memory module Figure 2 Table 3
Memory voltage regulator module (VRM) Figure 2 Table 3
PCIe two-port card Figure 3 Table 4
Power midplane (Not shown) Table 3
Power supply Figure 3 Table 4
Processor module Figure 2 Table 3
Processor voltage regulator module (VRM) Figure 2 Table 3
RAID card Figure 4 Table 5
RS-485 serial interface card Figure 3 Table 4
Service processor card Figure 3 Table 4
System backplane Figure 2 Table 3
Time-of-day battery card Figure 2 Table 3
Vital product data (VPD) card Figure 2 Table 3
Figure 1. CEC enclosure location codes (front view) (Models 982, 988)
CEC enclosure location codes (front view) (Model 982)
Table 2. CEC enclosure parts (front view) (Models 982, 988)
Location code Part name CCIN
(see note)		 Part number
Un-A1 to A5 CEC enclosure fan assembly (front)   00E9335
Un-D1 CEC enclosure control panel assembly   00E1966
Un-P1-T3
Un-P1-T4		 Not used
Un-P4-D1 Not used
Un-P4-D2 to D9 CEC enclosure disk drive, 300 GB 15 K (512 block size) 59E0 02YC612
Un-P4-D2 to D9 CEC enclosure disk drive, 300 GB 15 K (528 block size)
Contact your next level of support before ordering this drive.
02YC612 is the preferred FRU.		 59E0 00E9912
Un-P4-D10 to D13 Not used
Important: Read this entire note as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable.

When you order a part number reported in a serviceable event or call home record, check whether the parts-ordering system has a conditional substitute for DS8000®. There are some exceptions where the part number on the DS8000 FRU part number is not the same one that is reported and called home. The part number that is reported and called home might be the original eServer™ part number that might have firmware that is not appropriate for DS8000. Order the DS8000 FRU part number to ensure that the correct firmware is present.
Figure 2. CEC enclosure location codes (top view) (Models 982, 988)
CEC enclosure location codes (top view) (Model 982)
Table 3. CEC enclosure parts (top view) (Models 982, 988)
8408-E8E: storage model 982 (all) and model 988 (earlier versions)
8408-44E: storage model 988 (later versions)
Location code CEC enclosure part name CCIN
(see note 1)		 Part number
Un-P1 I/O backplane (8408-E8E only) 2CC9 (note 2) 00LR495
I/O backplane (8408-44E only) 2CC9 (note 2) 00E4862
Un-P1-C5-C1 Time-of-day battery card   00E3910
Un-P1-C13 I/O voltage regulator module (VRM) (8408-E8E only) 2CCF (note 2) 00LR458
I/O voltage regulator module (VRM) (8408-44E only) 2CCF (note 2) 01KU188
Un-P1-C14 Vital product data (VPD) card (8408-E8E only) (see note 3) 562C 00YM826
Vital product data (VPD) card (8408-44E only) (see note 3) 564B 01LT985
Un-P2 System backplane (8408-E8E only) 2CC6 00LR476
System backplane (8408-44E only) 2CEE 00E4861
Un-P2-C1
Un-P2-C4
Un-P2-C5
Un-P2-C8 		Processor voltage regulator module (VRM) (8408-E8E only) 2B80 (note 2) 00LU854
Processor voltage regulator module (VRM) (8408-44E only) 51DB (note 2) 01EL787
Un-P2-C2
Un-P2-C3
Un-P2-C6
Un-P2-C7		 Processor module FRU kit, 12 core 3.02 GHz (includes processor module, heat sink, and TIM) (Module cannot be ordered separately) (8408-E8E only) 551C 00LU543
Processor module FRU kit, 12 core 3.658 GHz (includes processor module, heat sink, and TIM) (Module cannot be ordered separately) (8408-44E only) 552C 01EL288
  Processor module heat sink and TIM kit   00LR426
Un-P2-C9
Un-P2-C42 		Memory voltage regulator module (VRM) (8408-E8E only) 51D6 00LU855
Memory voltage regulator module (VRM) (8408-44E only) 51DC 01EL972
Un-P2-C10 through Un-P2-C41 Memory module filler   41U9794
Un-P2-C10 through Un-P2-C41 Memory module, 32 GB, 1600 MHz DDR3 (8408-E8E only) 31E9 00VK194
Memory module, 32 GB, 1600 MHz DDR4 (8408-44E only) 31ED 00VK291
Un-P5 Power midplane (not shown, located under P1) (8408-E8E only) 2CC8 00LR496
Power midplane (not shown, located under P1) (8408-44E only) 2D32 00E4865
Note 1: Important: Read this entire note as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable.

When you order a part number reported in a serviceable event or call home record, check if the parts-ordering system has a conditional substitute for DS8000. There are some exceptions where the part number on the DS8000 FRU part number is not the same one that is reported and called home. The part number that is reported and called home might be the original eServer part number that might have firmware that is not appropriate for DS8000. Order the DS8000 FRU part number to ensure that the correct firmware is present.

Note 2: Order the part for your CEC enclosure server model (even if CCIN is the same for another model).
Note 3: VPD card is a storage-unique part. Do not use the server version.
Figure 3. CEC enclosure location codes (rear view) (Models 982, 988)
CEC enclosure location codes (rear view) (Model 982)
Table 4. CEC enclosure parts (rear) (Models 982, 988)
8408-E8E: storage model 982 (all) and model 988 (earlier versions)
8408-44E: storage model 988 (later versions)
Location code CEC enclosure part name CCIN Part number
Un-E1
Un-E2
Un-E3
Un-E4		 Power supply 1400 W (8408-E8E only) 2B1E 01AF591
Power supply 2000 W (8408-44E only) 51DE 01EL710
Un-P1-C2
Un-P1-C3
Un-P1-C8
Un-P1-C10 		PCIe two-port card 2DD4 98Y7945
Un-P1-C5 Service processor card (8408-E8E only) 2CC7 00YM808
Service processor card (8408-44E only) 2CED 02AM135
Un-P1-C6 I2C interface card assembly 2DD3 98Y9139
Un-P1-C7 RS-485 serial interface card 2DDD 98Y8925
Un-P1-C11 Ethernet adapter (1 Gb four-port, FC 5899) 576F 00RX893
Un-P1-C12 Ethernet adapter (10 Gb and 1 Gb four-port, FC EN0M ) 2CC0 00E3504
Un-P1-C1
Un-P1-C4
Un-P1-C9		 Not used
Un-P1-T1
Un-P1-T2		 Not used

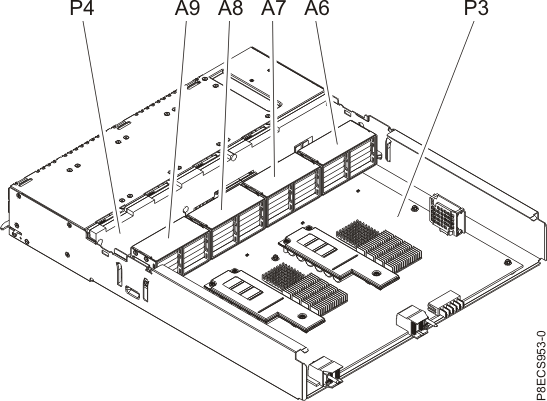

Figure 4. CEC enclosure location codes (assembly rear view) (Models 982, 988)
CEC enclosure location codes (assembly view) (Model 982)
Table 5. CEC enclosure parts (assembly view) (Models 982, 988)
8408-E8E: storage model 982 (all) and model 988 (earlier versions)
8408-44E: storage model 988 (later versions)
Location code CEC enclosure part name CCIN
(see note 1)		 Part number
Un-A6 to A9 Fan assembly (internal) 2CD0 00LU710
Un-P3 RAID card (8408-E8E only) 2CCD (note 2) 00E3992
RAID card (8408-44E only) 2CCD (note 2) 00E4317
Un-P4 Disk drive backplane 2CCB 00E3934
Note 1: Important: Read this entire note as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable.

When you order a part number reported in a serviceable event or call home record, check if the parts-ordering system has a conditional substitute for DS8000. There are some exceptions where the part number on the DS8000 FRU part number is not the same one that is reported and called home. The part number that is reported and called home might be the original eServer part number that might have firmware that is not appropriate for DS8000. Order the DS8000 FRU part number to ensure that the correct firmware is present.

Note 2: Order the part for your CEC enclosure server model (even if CCIN is the same for another model).
Table 6. CEC enclosure cables (rear view) (Models 982, 988)
Location code Part name Part number
Un-P1-C2-T1
Un-P1-C2-T2
Un-P1-C3-T1
Un-P1-C3-T2
Un-P1-C8-T1
Un-P1-C8-T2
Un-P1-C10-T1
Un-P1-C10-T2		 PCI cable FRUs, Models 982, 988, 98F, 88E See Figure 5 and Table 7.
Un-P1-C5-T4 Ethernet cable (SW1 to upper CEC XC1 service processor card, black) 98Y8949
Ethernet cable (SW1 to lower CEC XC2 service processor card, black) 98Y8950
Un-P1-C5-T5 Ethernet cable (SW2 to upper CEC XC1 service processor card, gray) 98Y8953
Ethernet cable (SW2 to lower CEC XC2 service processor card, gray) 98Y8954
Un-P1-C6-T1 RPC card to CEC enclosure I2C cable (RPC-1 to upper CEC) 98Y8941
RPC card to CEC enclosure I2C cable (RPC-1 to lower CEC) 98Y8942
Un-P1-C6-T2 RPC card to CEC enclosure I2C cable (RPC-2 to upper CEC) 98Y8943
RPC card to CEC enclosure I2C cable (RPC-2 to lower CEC) 98Y8944
Un-P1-C7-T1 RPC card to CEC enclosure serial cable (RPC-1 to upper CEC) 98Y8945
RPC card to CEC enclosure serial cable (RPC-1 to lower CEC) 98Y8946
Un-P1-C7-T2 RPC card to CEC enclosure serial cable (RPC-2 to upper CEC) 98Y8947
RPC card to CEC enclosure serial cable (RPC-2 to lower CEC) 98Y8948
Un-P1-C11-T1 Ethernet cable (SW1 to upper CEC XC1 LPAR, black) 98Y8951
Ethernet cable (SW1 to lower CEC XC2 LPAR, black) 98Y8952
Un-P1-C11-T2 Ethernet cable (SW2 to upper CEC XC1 LPAR, gray) 98Y8955
Ethernet cable (SW2 to lower CEC XC2 LPAR, gray) 98Y8956
Figure 5. PCIe cables, Model 982, 988, 98F, 88E
PCIe cables, Model 982, 988. 98F, 88E
Table 7. PCIe Cabling (Models 982, 988, 98F, 88E)
From CEC R1-XC1 To Rack 1 I/O Enclosure Cable FRU part number
R1-XC1-P1-C8-T1 (1B1) R1-XI1-P1-C7-T1 98Y8940
R1-XC1-P1-C8-T2 (1B2) R1-XI2-P1-C7-T1 98Y8940
R1-XC1-P1-C10-T1 (1B3) R1-XI3-P1-C7-T1 98Y8940
R1-XC1-P1-C10-T2 (1B4) R1-XI4-P1-C7-T1 98Y8940
From CEC R1-XC1 To Rack 2 I/O Enclosure Cable FRU part number
R1-XC1-P1-C2-T1 (2B1) R2-XI1-P1-C7-T1 98Y8940
R1-XC1-P1-C2-T2 (2B2) R2-XI2-P1-C7-T1 98Y8940
R1-XC1-P1-C3-T1 (2B3) R2-XI3-P1-C7-T1 98Y8940
R1-XC1-P1-C3-T2 (2B4) R2-XI4-P1-C7-T1 98Y8940
From CEC R1-XC2 To Rack 1 I/O Enclosure Cable FRU part number
R1-XC2-P1-C8-T1 (1B1) R1-XI1-P1-C7-T2 98Y8940
R1-XC2-P1-C8-T2 (1B2) R1-XI2-P1-C7-T2 98Y8940
R1-XC2-P1-C10-T1 (1B3) R1-XI3-P1-C7-T2 98Y8940
R1-XC2-P1-C10-T2 (1B4) R1-XI4-P1-C7-T2 98Y8940
From CEC R1-XC2 To Rack 2 I/O Enclosure Cable FRU part number
R1-XC2-P1-C2-T1 (2B1) R2-XI1-P1-C7-T2 98Y8940
R1-XC2-P1-C2-T2 (2B2) R2-XI2-P1-C7-T2 98Y8940
R1-XC2-P1-C3-T1 (2B3) R2-XI3-P1-C7-T2 98Y8940
R1-XC2-P1-C3-T2 (2B4) R2-XI4-P1-C7-T2 98Y8940
