Ethernet cables (Model 961)
Use the point-to-point cabling diagram below to route Ethernet cables in a Model 961.

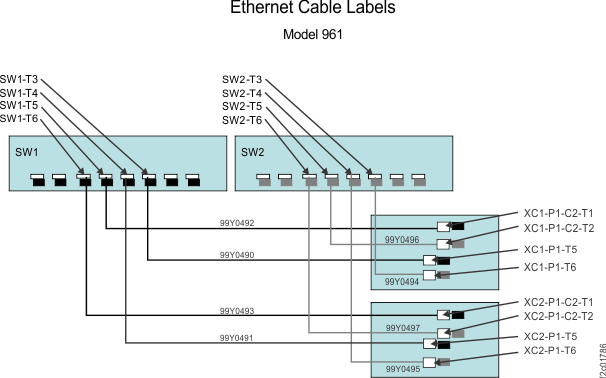

Use the point-to-point cabling diagram in Figure 1 and Table 1 to route Ethernet cables in a Model 961.
| From SW1 (black) | To Managed System or HMC | FRU P/N |
|---|---|---|
| SW1-T1 | Primary HMC eth0 (black) | 45W2258 |
| SW1-T2 | Secondary HMC eth0 or partner SF SW1-T2 (dual-SF) (if secondary HMC or dual-SF exists) | |
| SW1-T3 | (Upper) XC1-P1-T5 | 99Y0490 |
| SW1-T4 | (Lower) XC2-P1-T5 | 99Y0491 |
| SW1-T5 | (Upper) XC1-P1-C2-T1 | 99Y0492 |
| SW1-T6 | (Lower) XC2-P1-C2-T1 | 99Y0493 |
| SW1-T7 | Not used | |
| SW1-T8 | Not used | |
| From SW2 (gray) | To Managed System or HMC | FRU P/N |
| SW2-T1 | Primary HMC eth3 (gray) | 45W2262 |
| SW2-T2 | Secondary HMC eth3 or partner SF SW2-T2 (dual-SF) (if secondary HMC or dual-SF exists) | |
| SW2-T3 | (Upper) XC1-P1-T6 | 99Y0494 |
| SW2-T4 | (Lower) XC2-P1-T6 | 99Y0495 |
| SW2-T5 | (Upper) XC1-P1-C2-T2 | 99Y0496 |
| SW2-T6 | (Lower) XC2-P1-C2-T2 | 99Y0497 |
| SW2-T7 | Not used | |
| SW2-T8 | Not used |
