Ethernet (8-port) switch part numbers, Models 98x

Table 1. Entry for Model 983
Topic: Go to:
Model 983 rack locations (front) Figure 5
Management enclosure Ethernet cables, top view Figure 6
Locations codes of management enclosure, rear (Model 983) Figure 7
Cables for rear of management enclosure (Model 983) Table 10
Table 2. Entry for Model 98x (not 983)
Topic: Go to:
Model 984, 985, 986, 988 base rack locations (location similar for 980, 981, 982 Figure 1
8-port Ethernet switch, version 2 (power LED decal at right rear of switch) Figure 2
8-port Ethernet switch, version 3 (power LED at left rear of switch) Figure 3
Ethernet switch parts (Models 98x) Table 3
8-port Ethernet switch port locations, Model 98x Figure 4
Cables for Ethernet switch SW1 (upper) (Models 980, 981 single-phase, 984, 985) Table 4
Cables for Ethernet switch SW1 (upper) (Models 981 three-phase, 986) Table 5
Cables for Ethernet switch SW1 (upper) (Models 982, 988) Table 6
Cables for Ethernet switch SW2 (lower) (Models 980, 981 single-phase, 984, 985) Table 7
Cables for Ethernet switch SW2 (lower) (Models 981 three-phase, 986) Table 8
Cables for Ethernet switch SW2 (lower) (Models 982, 988) Table 9
Note: The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts-ordering system recognizes all valid part numbers and automatically substitutes an available part number as needed.
Figure 1. Model 984, 985, 986, 988 base rack locations
Note: Ethernet switch locations are similar for models 980, 981, 982.
Model 984, 985, 986, 988 base rack locations
Figure 2. 8-port Ethernet switch, version 2 (power LED decal at right rear of switch)
8-port Ethernet switch, version 2 (power LED at right rear of switch)

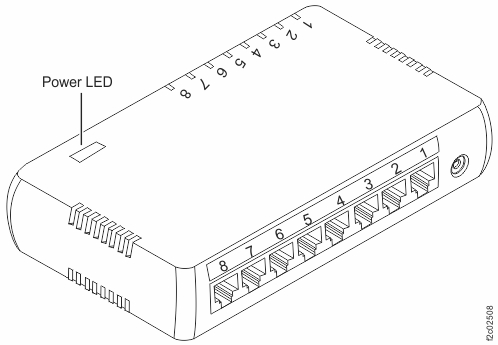

Figure 3. 8-port Ethernet switch, version 3 (power LED at left rear of switch)
8-port Ethernet switch, version 3 (power LED at left rear of switch)
Table 3. Ethernet switch parts (Models 98x)
Index Part name Part number
SW1/SW2 8-port Ethernet switch, version 2 (see Figure 2) 98Y3777
SW1/SW2 8-port Ethernet switch, version 3 (see Figure 3) 01LT734
Note: Power connectors are different between switch versions. Order the Ethernet switch version that matches the existing switch. If substitutions are necessary, they will be handled by the parts system.
Figure 4. 8-port Ethernet switch port locations, Model 98x
Note: Upper switch SW1 is "black" network; lower switch SW2 is "gray" network.
8-port Ethernet switch port locations, Model 98x

Cables for Ethernet switch SW1

To find part numbers for the cables that are connected to Ethernet switch SW1 (the upper Ethernet switch), see Figure 4, Table 4, Table 5, and Table 6.
Table 4. Cables for Ethernet switch SW1 (upper) (Models 980, 981 single-phase, 984, 985)
Index Part name Part number
T1 Not used
T2 Not used
T3 Cable, Ethernet switch SW1 -to- CEC enclosure XC11 FSP (1300 mm black) 00YM684
T4 Cable, Ethernet switch SW1 -to- CEC enclosure XC22 FSP (1100 mm black) 00YM685
T5 Cable, Ethernet switch SW1 -to- CEC enclosure XC11 (900 mm black) 00YM686
T6 Cable, Ethernet switch SW1 -to- CEC enclosure XC22 (800 mm black) 00YM687
T7 Cable, Ethernet switch SW1 -to- management console MC2 (secondary)
(FRU is complete MC2 cable bundle with tool)		 00YM683
T8 Cable, Ethernet switch SW1 -to- management console MC1 (primary)
(FRU is complete MC1 cable bundle with tool)		 00YM682
Notes:
  1. XC1 is the upper CEC enclosure.
  2. XC2 is the lower CEC enclosure.
Table 5. Cables for Ethernet switch SW1 (upper) (Models 981 three-phase, 986)
Index Part name Part number
T1 Not used
T2 Not used
T3 Cable, Ethernet switch SW1 -to- CEC enclosure XC11 FSP (1400 mm black) 98Y8829
T4 Cable, Ethernet switch SW1 -to- CEC enclosure XC22 FSP (1400 mm black) 98Y8830
T5 Cable, Ethernet switch SW1 -to- CEC enclosure XC11 (1400 mm black) 98Y8831
T6 Cable, Ethernet switch SW1 -to- CEC enclosure XC22 (1100 mm black) 98Y8832
T7 Cable, Ethernet switch SW1 -to- management console MC2 (secondary)
(FRU is complete MC2 cable bundle with tool)		 98Y8846
T8 Cable, Ethernet switch SW1 -to- management console MC1 (primary)
(FRU is complete MC1 cable bundle with tool)		 98Y8845
Notes:
  1. XC1 is the upper CEC enclosure.
  2. XC2 is the lower CEC enclosure.
Table 6. Cables for Ethernet switch SW1 (upper) (Models 982, 988)
Index Part name Part number
T1 Not used
T2 Not used
T3 Cable, Ethernet switch SW1 -to- CEC enclosure XC11 FSP (1400 mm black) 98Y8949
T4 Cable, Ethernet switch SW1 -to- CEC enclosure XC22 FSP (1100 mm black) 98Y8950
T5 Cable, Ethernet switch SW1 -to- CEC enclosure XC11 (1400 mm black) 98Y8951
T6 Cable, Ethernet switch SW1 -to- CEC enclosure XC22 (1100 mm black) 98Y8952
T7 Cable, Ethernet switch SW1 -to- management console MC2 (secondary)
(FRU is complete MC2 cable bundle with tool)		 98Y8846
T8 Cable, Ethernet switch SW1 -to- management console MC1 (primary)
(FRU is complete MC1 cable bundle with tool)		 98Y8845
Notes:
  1. XC1 is the upper CEC enclosure.
  2. XC2 is the lower CEC enclosure.

Cables for Ethernet switch SW2

To find part numbers for the cables that are connected to Ethernet switch SW2 (the lower Ethernet switch), see Figure 4, Table 7, Table 8, and Table 9.
Table 7. Cables for Ethernet switch SW2 (lower) (Models 980, 981 single-phase, 984, 985)
Index Part name Part number
T1 Not used
T2 Not used
T3 Cable, Ethernet switch SW2 -to- CEC enclosure XC11 FSP (1400 mm gray) 00YM688
T4 Cable, Ethernet switch SW2 -to- CEC enclosure XC22 FSP (1200 mm gray) 00YM689
T5 Cable, Ethernet switch SW2 -to- CEC enclosure XC11 (1150 mm gray) 00YM690
T6 Cable, Ethernet switch SW2 -to- CEC enclosure XC22 (950 mm gray) 00YM691
T7 Cable, Ethernet switch SW2 -to- management console MC2 (secondary)
(FRU is complete MC2 cable bundle with tool)		 00YM683
T8 Cable, Ethernet switch SW2 -to- management console MC1 (primary)
(FRU is complete MC1 cable bundle with tool)		 00YM682
Notes:
  1. XC1 is the upper CEC enclosure.
  2. XC2 is the lower CEC enclosure.
Table 8. Cables for Ethernet switch SW2 (lower) (Models 981 three-phase, 986)
Index Part name Part number
T1 Not used
T2 Not used
T3 Cable, Ethernet switch SW2 -to- CEC enclosure XC11 FSP (1400 mm gray) 98Y8833
T4 Cable, Ethernet switch SW2 -to- CEC enclosure XC22 FSP (1400 mm gray) 98Y8834
T5 Cable, Ethernet switch SW2 -to- CEC enclosure XC11 (1400 mm gray) 98Y8835
T6 Cable, Ethernet switch SW2 -to- CEC enclosure XC22 (1100 mm gray) 98Y8836
T7 Cable, Ethernet switch SW2 -to- management console MC2 (secondary)
(FRU is complete MC2 cable bundle with tool)		 98Y8846
T8 Cable, Ethernet switch SW2 -to- management console MC1 (primary)
(FRU is complete MC1 cable bundle with tool)		 98Y8845
Notes:
  1. XC1 is the upper CEC enclosure.
  2. XC2 is the lower CEC enclosure.
Table 9. Cables for Ethernet switch SW2 (lower) (Models 982, 988)
Index Part name Part number
T1 Not used
T2 Not used
T3 Cable, Ethernet switch SW2 -to- CEC enclosure XC11 FSP (1400 mm gray) 98Y8953
T4 Cable, Ethernet switch SW2 -to- CEC enclosure XC22 FSP (1100 mm gray) 98Y8954
T5 Cable, Ethernet switch SW2 -to- CEC enclosure XC11 (1400 mm gray) 98Y8955
T6 Cable, Ethernet switch SW2 -to- CEC enclosure XC22 (1100 mm gray) 98Y8956
T7 Cable, Ethernet switch SW2 -to- management console MC2 (secondary)
(FRU is complete MC2 cable bundle with tool)		 98Y8846
T8 Cable, Ethernet switch SW2 -to- management console MC1 (primary)
(FRU is complete MC1 cable bundle with tool)		 98Y8845
Notes:
  1. XC1 is the upper CEC enclosure.
  2. XC2 is the lower CEC enclosure.

Model 983

Figure 5. Model 983 rack locations (front)
Locations in rack (front)
Figure 6. Management enclosure Ethernet cables, top view
Management enclosure Ethernet cables, top view
Figure 7. Locations codes of management enclosure, rear (Model 983)
Location codes, I/O enclosure (2U) adapter (PCIe, SAS device, zHyperLink)
Table 10. Cables for rear of management enclosure (Model 983)
Location Part name Part number
MC1-x, MC2-x, SW1-Tx, SW2-Tx RJ-45 cable coupler (snaps into rear bulkhead, connects internal and external Ethernet cables)
(not stocked as a FRU)		 45W9541
MC1-A Ethernet cable, MC1 to customer network 02AN251
MC1-B Ethernet cable, MC1 to second customer network (optional feature, if used) 02AN252
MC2-A Ethernet cable, MC2 to customer network 02AN253
MC2-B Ethernet cable, MC2 to second customer network (optional feature, if used) 02AN254
SW1-T1 Not used
SW1-T2 Ethernet cable, SW1 -to- UPS E61 (upper) 02AN241
SW1-T3 Ethernet cable, SW1 -to- CEC enclosure XC1 (upper) FSP 02AN242
SW1-T4 Ethernet cable, SW1 -to- CEC enclosure XC2 (lower) FSP 02AN243
SW1-T5 Ethernet cable, SW1 -to- CEC enclosure XC1 (upper) 02AN244
SW1-T6 Ethernet cable, SW1 -to- CEC enclosure XC2 (lower) 02AN245
SW2-T1 Not used
SW2-T2 Ethernet cable, SW2 -to- UPS E62 (lower) 02AN246
SW2-T3 Ethernet cable, SW2 -to- CEC enclosure XC1 (upper) FSP 02AN247
SW2-T4 Ethernet cable, SW2 -to- CEC enclosure XC2 (lower) FSP 02AN248
SW2-T5 Ethernet cable, SW2 -to- CEC enclosure XC1 (upper) 02AN249
SW2-T6 Ethernet cable, SW2 -to- CEC enclosure XC2 (lower) 02AN250
Notes:
  • XC1 is the upper CEC enclosure.
  • XC2 is the lower CEC enclosure.
