FC-AL and Flash PCIe cables – Models 980, 98B

These tables show the point-to-point connections for FC-AL and Flash PCIe cables on a Model 980, with or without expansion racks. Flash enclosures that are shown here are HPFE (Gen1). For flash PCIe and SAS configurations with HPFE Gen2, refer to Flash PCIe and SAS cables – Models 980, 98B with HPFE Gen2.

  • Racks are shown with the maximum number of storage enclosures and device adapter cards. Your rack might contain fewer storage enclosures or device adapter cards.
  • Figure 1 and Figure 2 show the maximum number of racks in a storage facility with these rack models.
Figure 1. Point-to-point cabling diagram for storage enclosure FC-AL and Flash PCIe cables (Models 980, 98B, rear view, racks 1, 2)
Point-to-point cabling diagram for storage enclosure PCIe and FC-AL cables (Models 980, 98B, rear view, racks 1, 2)
Figure 2. Point-to-point cabling diagram for the FC-AL cables (Models 980, 98B, rear view, rack 3)
Point-to-point cabling diagram for the FC-AL cables (Models 980, 98B, rear view, rack 3)

FC-AL cables

  1. FC-AL cables and connectors are identified with two different color codes and a location designator:
    1. A colored band, corresponding to the color code of the DA pair, is found on each end of the cable near the connector. These color codes are shown in Figure 1 and Figure 2.
    2. The connector itself is color coded to help prevent cross-cabling at the Fibre Channel interface card (FCIC) or device adapter card (DA) end. The connectors always appear in the following order:
      beige (T1), green (T2), black (T3), and blue (T4)
      as shown in Figure 3 and Figure 4. This color code is specific to each FCIC or DA, and is independent of the DA pair color code.
    3. A black or white label at each end of the cable shows a location designator (for example, 0A2). Both ends of the cable have the same location designator and DA pair color code. However, the connector at each end of the same cable usually does NOT have the same color code.
  2. Location designators are in the form CTP, where:
    C
    Is the device adapter pair (0-7)
    T
    Is the port pair on the device adapter (A, B, C, D, a, b, c, d) (uppercase for left device adapter in pair, lowercase for right device adapter in pair).
    P
    Is the logical position of the downstream FCIC in the loop.
    Example: 2a1 is the link between device adapter R1-XI4-C6-T1 and R1-G09-C1-T2.
    2
    Device adapter pair 2
    a
    First port pair on right adapter of device adapter pair (lowercase a)
    1
    First FCIC on loop of this port pair
    The connector plugged into R1-XI4-C6-T1 (2a1) is beige, while the connector plugged into R1-G09-C1-T2 (2a1) is green.
  3. Some connectors are for cables that would go to an optional expansion rack. In that case, only one instance of that designator is on the rack.
  4. The black and white label at each end might have a physical location code in addition to the location designator.
Figure 3. FC-AL cable connector color codes - Fibre Channel interface card (FCIC) end
FC-AL cable connector color codes - Fibre Channel interface card (FCIC) end
Figure 4. FC-AL cable connector color codes - device adapter card (DA) end
FC-AL cable connector color codes - device adapter card (DA) end

FC-AL cabling tables

Table 1 and Table 2 show a summary of FC-AL cabling for models 980 and 98B.
Table 3 and Table 4 show details of the FC-AL loops originating with Rack 1 device adapters (device adapter pairs 2 and 3, in normal installation order).
Table 5 and Table 6 show details of the FC-AL loops originating with Rack 2 device adapters (device adapter pairs 6, and 7, in normal installation order).
Note: Location designators are labeled as link in the following tables.
Table 1. FC-AL cabling summary - Rack 1 device adapters (Models 980, 98B)

From:

DA pair

DA

Pair (link)

To:

Storage Enclosure

To:

Storage Enclosure

To:

Storage Enclosure

To:

Storage Enclosure

R1-XI3-P1-C3-T1/T2
R1-XI4-P1-C6-T1/T2
2 (A)
2 (a)
R1-G09 R1-G07 R1-G05 R1-G03
R1-XI3-P1-C3-T3/T4
R1-XI4-P1-C6-T3/T4
2 (B)
2 (b)
R1-G10 R1-G08 R1-G06 R1-G04
R1-XI3-P1-C6-T1/T2
R1-XI4-P1-C3-T1/T2
3 (A)
3 (a)
R1-G01 R2-G11 R2-G09 R2-G07
R1-XI3-P1-C6-T3/T4
R1-XI4-P1-C3-T3/T4
3 (B)
3 (b)
R1-G02 R2-G12 R2-G10 R2-G08
Table 2. FC-AL cabling summary - Rack 2 device adapters (Models 980, 98B)

From:

DA pair

DA

Pair (link)

To:

Storage Enclosure

To:

Storage Enclosure

To:

Storage Enclosure

To:

Storage Enclosure

R2-XI3-P1-C3-T1/T2
R2-XI4-P1-C6-T1/T2
6 (A)
6 (a)
R2-G05 R2-G03 R2-G01 R3-G15
R2-XI3-P1-C3-T3/T4
R2-XI4-P1-C6-T3/T4
6 (B)
6 (b)
R2-G06 R2-G04 R2-G02 R3-G16
R2-XI3-P1-C6-T1/T2
R2-XI4-P1-C3-T1/T2
7 (A)
7 (a)
R3-G13 R3-G11 R3-G09 R3-G07
R2-XI3-P1-C6-T3/T4
R2-XI4-P1-C3-T3/T4
7 (B)
7 (b)
R3-G14 R3-G12 R3-G10 R3-G08
Table 3. FC-AL cabling matrix - DA pair 2 (Models 980, 98B)

From:

DA

Link

To:

FCIC



From:

FCIC

Link

To:

FCIC

R1-XI3-P1-C3-T1 2A1 R1-G09-P1-C1-T1   R1-G09-P1-C1-T3 2A3 R1-G07-P1-C1-T1
R1-XI4-P1-C6-T1 2a1 R1-G09-P1-C1-T2   R1-G09-P1-C1-T4 2a3 R1-G07-P1-C1-T2
R1-XI3-P1-C3-T2 2A2 R1-G09-P1-C2-T1   R1-G09-P1-C2-T3 2A4 R1-G07-P1-C2-T1
R1-XI4-P1-C6-T2 2a2 R1-G09-P1-C2-T2   R1-G09-P1-C2-T4 2a4 R1-G07-P1-C2-T2
R1-XI3-P1-C3-T3 2B1 R1-G10-P1-C1-T1   R1-G10-P1-C1-T3 2B3 R1-G08-P1-C1-T1
R1-XI4-P1-C6-T3 2b1 R1-G10-P1-C1-T2   R1-G10-P1-C1-T4 2b3 R1-G08-P1-C1-T2
R1-XI3-P1-C3-T4 2B2 R1-G10-P1-C2-T1   R1-G10-P1-C2-T3 2B4 R1-G08-P1-C2-T1
R1-XI4-P1-C6-T4 2b2 R1-G10-P1-C2-T2   R1-G10-P1-C2-T4 2b4 R1-G08-P1-C2-T2

From:

FCIC

Link

To:

FCIC



From:

FCIC

Link

To:

FCIC

R1-G07-P1-C1-T3 2A5 R1-G05-P1-C1-T1   R1-G05-P1-C1-T3 2A7 R1-G03-P1-C1-T1
R1-G07-P1-C1-T4 2a5 R1-G05-P1-C1-T2   R1-G05-P1-C1-T4 2a7 R1-G03-P1-C1-T2
R1-G07-P1-C2-T3 2A6 R1-G05-P1-C2-T1   R1-G05-P1-C2-T3 2A8 R1-G03-P1-C2-T1
R1-G07-P1-C2-T4 2a6 R1-G05-P1-C2-T2   R1-G05-P1-C2-T4 2a8 R1-G03-P1-C2-T2
R1-G08-P1-C1-T3 2B5 R1-G06-P1-C1-T1   R1-G06-P1-C1-T3 2B7 R1-G04-P1-C1-T1
R1-G08-P1-C1-T4 2b5 R1-G06-P1-C1-T2   R1-G06-P1-C1-T4 2b7 R1-G04-P1-C1-T2
R1-G08-P1-C2-T3 2B6 R1-G06-P1-C2-T1   R1-G06-P1-C2-T3 2B8 R1-G04-P1-C2-T1
R1-G08-P1-C2-T4 2b6 R1-G06-P1-C2-T2   R1-G06-P1-C2-T4 2b8 R1-G04-P1-C2-T2
Table 4. FC-AL cabling matrix - DA pair 3 (Models 980, 98B)

From:

DA

Link

To:

FCIC



From:

FCIC

Link

To:

FCIC

R1-XI3-P1-C6-T1 3A1 R1-G01-P1-C1-T1   R1-G01-P1-C1-T3 3A3 R2-G11-P1-C1-T1
R1-XI4-P1-C3-T1 3a1 R1-G01-P1-C1-T2   R1-G01-P1-C1-T4 3a3 R2-G11-P1-C1-T2
R1-XI3-P1-C6-T2 3A2 R1-G01-P1-C2-T1   R1-G01-P1-C2-T3 3A4 R2-G11-P1-C2-T1
R1-XI4-P1-C3-T2 3a2 R1-G01-P1-C2-T2   R1-G01-P1-C2-T4 3a4 R2-G11-P1-C2-T2
R1-XI3-P1-C6-T3 3B1 R1-G02-P1-C1-T1   R1-G02-P1-C1-T3 3B3 R2-G12-P1-C1-T1
R1-XI4-P1-C3-T3 3b1 R1-G02-P1-C1-T2   R1-G02-P1-C1-T4 3b3 R2-G12-P1-C1-T2
R1-XI3-P1-C6-T4 3B2 R1-G02-P1-C2-T1   R1-G02-P1-C2-T3 3B4 R2-G12-P1-C2-T1
R1-XI4-P1-C3-T4 3b2 R1-G02-P1-C2-T2   R1-G02-P1-C2-T4 3b4 R2-G12-P1-C2-T2

From:

FCIC

Link

To:

FCIC



From:

FCIC

Link

To:

FCIC

R2-G11-P1-C1-T3 3A5 R2-G09-P1-C1-T1   R2-G09-P1-C1-T3 3A7 R2-G07-P1-C1-T1
R2-G11-P1-C1-T4 3a5 R2-G09-P1-C1-T2   R2-G09-P1-C1-T4 3a7 R2-G07-P1-C1-T2
R2-G11-P1-C2-T3 3A6 R2-G09-P1-C2-T1   R2-G09-P1-C2-T3 3A8 R2-G07-P1-C2-T1
R2-G11-P1-C2-T4 3a6 R2-G09-P1-C2-T2   R2-G09-P1-C2-T4 3a8 R2-G07-P1-C2-T2
R2-G12-P1-C1-T3 3B5 R2-G10-P1-C1-T1   R2-G10-P1-C1-T3 3B7 R2-G08-P1-C1-T1
R2-G12-P1-C1-T4 3b5 R2-G10-P1-C1-T2   R2-G10-P1-C1-T4 3b7 R2-G08-P1-C1-T2
R2-G12-P1-C2-T3 3B6 R2-G10-P1-C2-T1   R2-G10-P1-C2-T3 3B8 R2-G08-P1-C2-T1
R2-G12-P1-C2-T4 3b6 R2-G10-P1-C2-T2   R2-G10-P1-C2-T4 3b8 R2-G08-P1-C2-T2
Table 5. FC-AL cabling matrix - DA pair 6 (Models 980, 98B)

From:

DA

Link

To:

FCIC



From:

FCIC

Link

To:

FCIC

R2-XI3-P1-C3-T1 6A1 R2-G05-P1-C1-T1   R2-G05-P1-C1-T3 6A3 R2-G03-P1-C1-T1
R2-XI4-P1-C6-T1 6a1 R2-G05-P1-C1-T2   R2-G05-P1-C1-T4 6a3 R2-G03-P1-C1-T2
R2-XI3-P1-C3-T2 6A2 R2-G05-P1-C2-T1   R2-G05-P1-C2-T3 6A4 R2-G03-P1-C2-T1
R2-XI4-P1-C6-T2 6a2 R2-G05-P1-C2-T2   R2-G05-P1-C2-T4 6a4 R2-G03-P1-C2-T2
R2-XI3-P1-C3-T3 6B1 R2-G06-P1-C1-T1   R2-G06-P1-C1-T3 6B3 R2-G04-P1-C1-T1
R2-XI4-P1-C6-T3 6b1 R2-G06-P1-C1-T2   R2-G06-P1-C1-T4 6b3 R2-G04-P1-C1-T2
R2-XI3-P1-C3-T4 6B2 R2-G06-P1-C2-T1   R2-G06-P1-C2-T3 6B4 R2-G04-P1-C2-T1
R2-XI4-P1-C6-T4 6b2 R2-G06-P1-C2-T2   R2-G06-P1-C2-T4 6b4 R2-G04-P1-C2-T2

From:

FCIC

Link

To:

FCIC



From:

FCIC

Link

To:

FCIC

R2-G03-P1-C1-T3 6A5 R2-G01-P1-C1-T1   R2-G01-P1-C1-T3 6A7 R3-G15-P1-C1-T1
R2-G03-P1-C1-T4 6a5 R2-G01-P1-C1-T2   R2-G01-P1-C1-T4 6a7 R3-G15-P1-C1-T2
R2-G03-P1-C2-T3 6A6 R2-G01-P1-C2-T1   R2-G01-P1-C2-T3 6A8 R3-G15-P1-C2-T1
R2-G03-P1-C2-T4 6a6 R2-G01-P1-C2-T2   R2-G01-P1-C2-T4 6a8 R3-G15-P1-C2-T2
R2-G04-P1-C1-T3 6B5 R2-G02-P1-C1-T1   R2-G02-P1-C1-T3 6B7 R3-G16-P1-C1-T1
R2-G04-P1-C1-T4 6b5 R2-G02-P1-C1-T2   R2-G02-P1-C1-T4 6b7 R3-G16-P1-C1-T2
R2-G04-P1-C2-T3 6B6 R2-G02-P1-C2-T1   R2-G02-P1-C2-T3 6B8 R3-G16-P1-C2-T1
R2-G04-P1-C2-T4 6b6 R2-G02-P1-C2-T2   R2-G02-P1-C2-T4 6b8 R3-G16-P1-C2-T2
Table 6. FC-AL cabling matrix - DA pair 7 (Models 980, 98B)

From:

DA

Link

To:

FCIC



From:

FCIC

Link

To:

FCIC

R2-XI3-P1-C6-T1 7A1 R3-G13-P1-C1-T1   R3-G13-P1-C1-T3 7A3 R3-G11-P1-C1-T1
R2-XI4-P1-C3-T1 7a1 R3-G13-P1-C1-T2   R3-G13-P1-C1-T4 7a3 R3-G11-P1-C1-T2
R2-XI3-P1-C6-T2 7A2 R3-G13-P1-C2-T1   R3-G13-P1-C2-T3 7A4 R3-G11-P1-C2-T1
R2-XI4-P1-C3-T2 7a2 R3-G13-P1-C2-T2   R3-G13-P1-C2-T4 7a4 R3-G11-P1-C2-T2
R2-XI3-P1-C6-T3 7B1 R3-G14-P1-C1-T1   R3-G14-P1-C1-T3 7B3 R3-G12-P1-C1-T1
R2-XI4-P1-C3-T3 7b1 R3-G14-P1-C1-T2   R3-G14-P1-C1-T4 7b3 R3-G12-P1-C1-T2
R2-XI3-P1-C6-T4 7B2 R3-G14-P1-C2-T1   R3-G14-P1-C2-T3 7B4 R3-G12-P1-C2-T1
R2-XI4-P1-C3-T4 7b2 R3-G14-P1-C2-T2   R3-G14-P1-C2-T4 7b4 R3-G12-P1-C2-T2

From:

FCIC

Link

To:

FCIC



From:

FCIC

Link

To:

FCIC

R3-G11-P1-C1-T3 7A5 R3-G09-P1-C1-T1   R3-G09-P1-C1-T3 7A7 R3-G07-P1-C1-T1
R3-G11-P1-C1-T4 7a5 R3-G09-P1-C1-T2   R3-G09-P1-C1-T4 7a7 R3-G07-P1-C1-T2
R3-G11-P1-C2-T3 7A6 R3-G09-P1-C2-T1   R3-G09-P1-C2-T3 7A8 R3-G07-P1-C2-T1
R3-G11-P1-C2-T4 7a6 R3-G09-P1-C2-T2   R3-G09-P1-C2-T4 7a8 R3-G07-P1-C2-T2
R3-G12-P1-C1-T3 7B5 R3-G10-P1-C1-T1   R3-G10-P1-C1-T3 7B7 R3-G08-P1-C1-T1
R3-G12-P1-C1-T4 7b5 R3-G10-P1-C1-T2   R3-G10-P1-C1-T4 7b7 R3-G08-P1-C1-T2
R3-G12-P1-C2-T3 7B6 R3-G10-P1-C2-T1   R3-G10-P1-C2-T3 7B8 R3-G08-P1-C2-T1
R3-G12-P1-C2-T4 7b6 R3-G10-P1-C2-T2   R3-G10-P1-C2-T4 7b8 R3-G08-P1-C2-T2

Flash PCIe Cables

  1. Flash PCIe cables and connectors are identified with a colored band matching the DA pair and two different color codes:
    • A colored band, corresponding to the color code of the DA pair, is found on each end of the cable near the connector. These color codes are shown in Figure 1.
    • The connector is color-coded to help prevent cross-cabling at the RAID controller card or I/O enclosure PCIe and PCN card end. Connectors on cables attaching to Rx-Bxx-P1-C1-T3 have white labels with black text, and connectors on cables attaching to Rx-Bxx-P1-C2-T3 have black labels with white text. An example of this showing both cables attaching to an enclosure is shown in Figure 5. This alternating color scheme is the same for all Flash PCIe cables, and is independent of the DA pair color code. Figure 6 and Figure 7 show the Flash PCIe cable connection ends.
  2. The black and white label at each end has a physical location code showing the "FROM" and "TO" end.

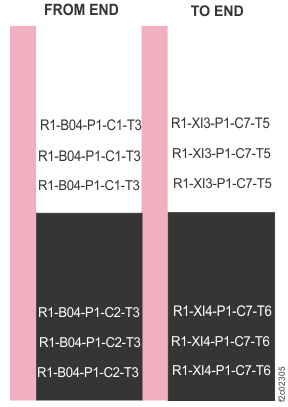

Figure 5. Flash PCIe cable connector example. Both cables are shown and actual values might not match this machine model.
Flash PCIe cable connector example; both cables are shown and actual values might not match this machine model
Figure 6. Flash PCIe cable connector - RAID controller card end (P1-C1-T3 / P1-C2-T3)
RAID controller card connections
Figure 7. Flash PCIe cable connector color codes - I/O enclosure PCIe and PCN card end (-C7-T5 / -C7-T6)
RAID controller card connections

Flash PCIe cabling tables

Table 7 and Table 8 show a summary of Flash PCIe cabling for models 980 and 98B single-phase power.

Table 9 shows details of the Flash PCIe cabling with Rack 1 high-performance flash enclosures (device adapter pairs 18 and 19, in normal installation order).

Table 10 shows details of the Flash PCIe cabling with Rack 2 high-performance flash enclosures (device adapter pairs 22 and 23, in normal installation order).

Note: Location designators are labeled as link in the following tables.
Table 7. Flash PCIe cabling summary – Rack 1 device adapters (Models 980, 98B single-phase power)
From DA pair DA pair (link) To storage enclosure
R1-XI3-P1-C7-T5
R1-XI4-P1-C7-T6
18 (A)
18 (B)
R1-B04
R1-XI4-P1-C7-T5
R1-XI3-P1-C7-T6
19 (A)
19 (B)
R1-B02
Table 8. Flash PCIe cabling summary – Rack 2 device adapters (Models 980, 98B single-phase power)
From DA pair DA pair (link) To storage enclosure
R2-XI3-P1-C7-T5
R2-XI4-P1-C7-T6
22 (A)
22 (B)
R2-B04
R2-XI4-P1-C7-T5
R2-XI3-P1-C7-T6
23 (A)
23 (B)
R2-B02
Table 9. Flash PCIe cabling matrix – Rack 1 (Models 980, 98B single-phase power)
From DA Link To RAID controller card
R1-XI3-P1-C7-T5 18A R1-B04-P1-C1-T3
R1-XI4-P1-C7-T6 18B R1-B04-P1-C2-T3
R1-XI4-P1-C7-T5 19A R1-B02-P1-C1-T3
R1-XI3-P1-C7-T6 19B R1-B02-P1-C2-T3
Table 10. Flash PCIe cabling matrix – Rack 2 (Models 980, 98B single-phase power)
From DA Link To RAID controller card
R2-XI3-P1-C7-T5 22A R2-B04-P1-C1-T3
R2-XI4-P1-C7-T6 22B R2-B04-P1-C2-T3
R2-XI4-P1-C7-T5 23A R2-B02-P1-C1-T3
R2-XI3-P1-C7-T6 23B R2-B02-P1-C2-T3
