I/O enclosure (2U) location codes (Model 983)

Use this section to find location codes for parts on the I/O enclosure. For part numbers, see I/O enclosure (2U) part numbers (Model 983).

Table 1. I/O enclosure (2U) locations (front)
Part Reference
I/O enclosure (2U) fan Figure 1
I/O enclosure (2U) power supply Figure 1
Table 2. I/O enclosure (2U) locations (rear)
Part Reference
I/O enclosure (2U)
Note: I/O enclosure FRU assembly includes the midplane, front indicator LEDs and internal power cables.
Figure 2
I/O enclosure (2U) adapter (Fibre Channel host) Figure 3
I/O enclosure (2U) adapter (PCIe) Figure 4
I/O enclosure (2U) adapter (PCIe and SAS device) Figure 5
I/O enclosure (2U) adapter (PCN) Figure 6
I/O enclosure (2U) midplane assembly
Note: I/O enclosure FRU assembly includes the midplane, front indicator LEDs and internal power cables.
Figure 2

I/O enclosure (2U) locations (front)

Figure 1. I/O enclosure (2U) locations (front) (model 983)
I/O enclosure (2U) locations (front) (model 983)
Table 3. Location codes for the I/O enclosure (2U) (front)
Location code Part name Connector
U1600.1G3.sssssss-Ax
(x = 1, 2)		 I/O enclosure (2U) fan assembly N/A
U1600.1G3.sssssss-Ex
(x = 1, 2)		 I/O enclosure (2U) power supply N/A

I/O enclosure (2U) locations (rear)

Figure 2. Location codes, I/O enclosure (2U) (rear) (model 983)
I/O enclosure (2U) locations code (rear) (model 983) with logical IG3, 1G4
Figure 3. Location codes, I/O enclosure (2U) adapter (Fibre Channel host)
I/O enclosure (2U) adapter (Fibre Channel host)

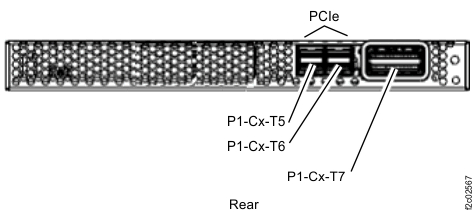

Figure 4. Location codes, I/O enclosure (2U) adapter (PCIe)
Location codes, I/O enclosure (2U) adapter (PCIe

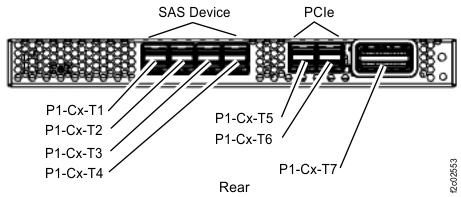

Figure 5. Location codes, I/O enclosure (2U) adapter (PCIe and SAS device)
I/O enclosure (2U) adapter (generic)
Figure 6. Location codes, I/O enclosure (2U) adapter (PCN)
Location codes, I/O enclosure (2U) adapter (PCN)

Table 4. Location codes for the I/O enclosure (2U) (rear)
Location code Part name Connector
U1600.1G3.sssssss I/O enclosure
U1600.1G3.sssssss-P1 I/O enclosure (2U) midplane assembly
U1600.1G4.sssssss-P1-C2
U1600.1G3.sssssss-P1-C7		 I/O enclosure (2U) adapter (PCIe)
U1600.1G4.sssssss-P1-C2-Tx
U1600.1G3.sssssss-P1-C7-Tx
(x = 5,6): PCIe
(x = 7): not used
See Figure 4		   PCIe
U1600.1G3.sssssss-P1-C1
U1600.1G4.sssssss-P1-C8		 I/O enclosure (2U) adapter (PCIe and SAS device)
U1600.1G3.sssssss-P1-C1-Tx
U1600.1G4.sssssss-P1-C8-Tx
(x = 1, 2, 3, 4): SAS
(x = 5, 6): PCIe
(x = 7): not used
See Figure 5.

SAS
PCIe
U1600.1G3.sssssss-P1-C3
U1600.1G3.sssssss-P1-C5
U1600.1G4.sssssss-P1-C4
U1600.1G4.sssssss-P1-C6		 I/O enclosure (2U) adapter (Fibre Channel host)
U1600.1G3.sssssss-P1-C3-Tx
U1600.1G3.sssssss-P1-C5-Tx
U1600.1G4.sssssss-P1-C4-Tx
U1600.1G4.sssssss-P1-C6-Tx
(x = 0, 1, 2, 3): Fibre Channel
See Figure 3.		   Fibre Channel
U1600.1G3.sssssss-P1-C9 I/O enclosure (2U) adapter (PCN)
Note: Power Control Network

U1600.1G3.sssssss-P1-C9-Ty
(y = 1, 2, top to bottom)
See Figure 6.
PCN
