Rack power and cooling location codes (Model 983)

Use Table 1 to find the part of the rack power and cooling system for which you seek location code information. For part numbers, see Rack power and cooling part numbers, Models 983.
Table 1. Rack power and cooling location codes
Part See
Power and cooling locations in rack Figure 1
Management enclosure locations
  • 8 port Ethernet switches
  • Fans
  • Local remote switch card
  • Management enclosure external connections
  • Management enclosure power supplies
  • RPC card locations
 Management enclosure location codes (Model 983)
UPS locations (rear) Figure 1, Figure 2
UPS locations (front) Figure 1, Figure 3

Overview of locations, rack

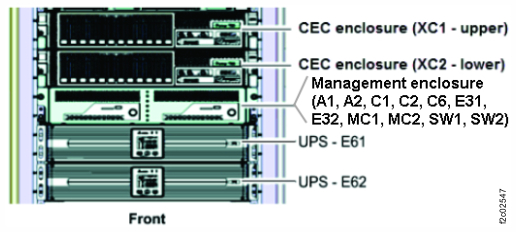

Figure 1. Storage facility power locations
Storage controller module (enclosures shown)
Table 2. Power locations
Location code Part name
U2nnn.mmm.sssssss-E6x UPS
U2nnn.mmm.sssssss-E6x-E1
(x = 1, 2)		 UPS battery
U2nnn.mmm.sssssss-E6x-C1
(x = 1, 2)		 UPS network card

UPS locations

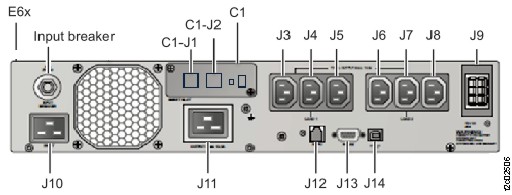

Figure 2. Location codes for the UPS (Model 983), rear view
Location codes for the UPS (Model 983), rear view

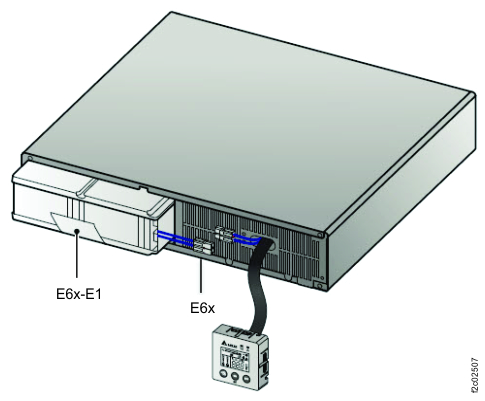

Figure 3. Location codes for the UPS (Model 983), front view
Location codes for the UPS (Model 983), front view
Table 3. UPS locations
Location code Part name Connector
U2nnn.mmm.sssssss-E6x UPS
U2nnn.mmm.sssssss-E6x-C1 UPS network card
U2nnn.mmm.sssssss-E6x-E1 UPS internal battery
U2nnn.mmm.sssssss-E6x-C1-J1   Ethernet port to Ethernet switch
U2nnn.mmm.sssssss-E6x-C1-J2   Not used
U2nnn.mmm.sssssss-E6x-J3   To HPFE enclosure Gen2, upper
U2nnn.mmm.sssssss-E6x-J4   To HPFE enclosure Gen2, lower
U2nnn.mmm.sssssss-E6x-J5   To I/O enclosure (2U)
U2nnn.mmm.sssssss-E6x-J6   To CEC enclosure, upper
U2nnn.mmm.sssssss-E6x-J7   To CEC enclosure, lower
U2nnn.mmm.sssssss-E6x-J8   To management enclosure
U2nnn.mmm.sssssss-E6x-J9   Not used
U2nnn.mmm.sssssss-E6x-J10   Mainline power
U2nnn.mmm.sssssss-E6x-J11   Not used
U2nnn.mmm.sssssss-E6x-J12   Not used
U2nnn.mmm.sssssss-E6x-J13   RS-232 to RPC card
U2nnn.mmm.sssssss-E6x-J14   Not used
