CEC enclosure LED indicators (Models 982, 988)

This section contains FRUs that have LED indicators. Each listed assembly is shown with a description of its LEDs. While CEC enclosure LED indicators might indicate a failure, do not use them as a starting point for a repair.

Table 1. List of CEC enclosure assemblies with LEDs
Assembly Refer to
Control panel assembly Figure 1
CEC front fan LEDs Figure 2
Front P1/P2! fault roll-up LED Figure 3
Front P3/P4! fault roll-up LED Figure 4
CEC disk drive LED Figure 5
Service indicator LEDs Figure 6
CEC enclosure, PCIe adapter slot LEDs Figure 7
Power supply LEDs Figure 8 and Figure 9

CEC enclosure front LED indicators

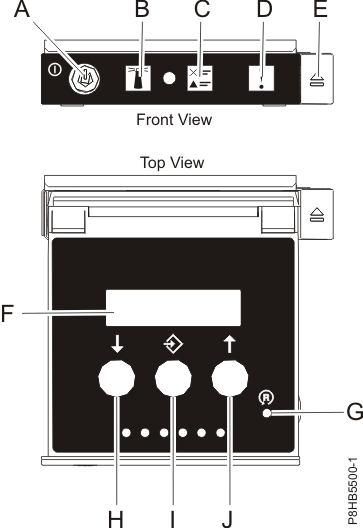

Figure 1. CEC enclosure control panel assembly (Models 98x)
Control panel LEDs (Models 98x)
Table 2. Interpreting the LEDs on the CEC enclosure control panel assembly
Index LED Function Color LED Off LED On LED Flash
A Power Green No power Full power Standby power1 (FSP function running)
B Identify Blue Normal Identify N/A
C System information Amber Normal Requires attention N/A
D Enclosure fault roll-up light Amber Normal Fault N/A
F Function/Data display
Notes:
  1. During CEC power-on, there is approximately a 30-second transition period between flashing to solid when the LED might flash faster.

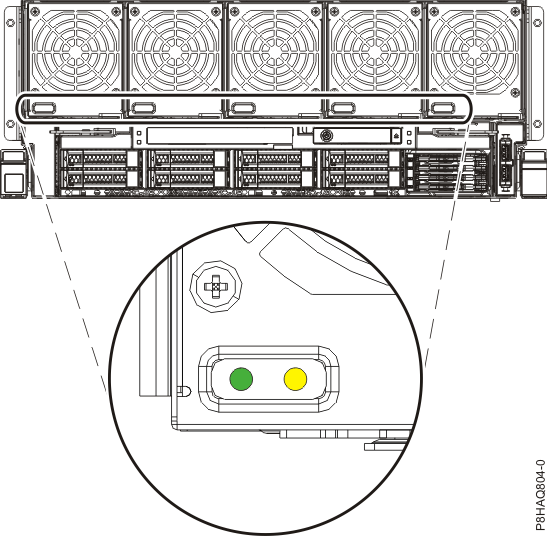

Figure 2. CEC front fan LEDs (Model 982)
CEC front fan LEDs (Model 982)
In Figure 3:
  • The amber P1/P2! fault roll-up LED is lit solid when a faulty or failed part in the upper domain of the system has been detected.
  • The amber P1/P2! fault roll-up LED is flashing when a part in the upper domain was selected by using the identify function.

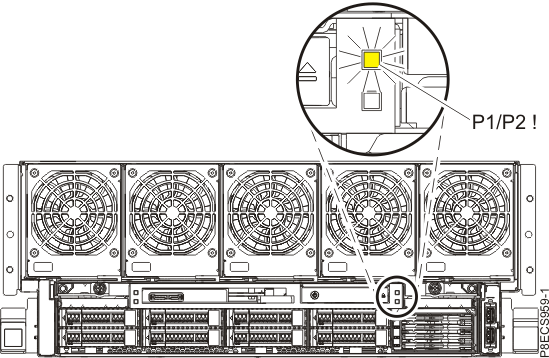

Figure 3. Front P1/P2 ! fault roll-up LED
Front P1/P2 ! fault roll-up LED
In Figure 4:
  • The amber P3/P4! fault roll-up LED is lit solid when a faulty or failed part in the lower domain of the system has been detected.
  • The amber P3/P4! fault roll-up LED is flashing when a part in the lower domain was selected by using the identify function.

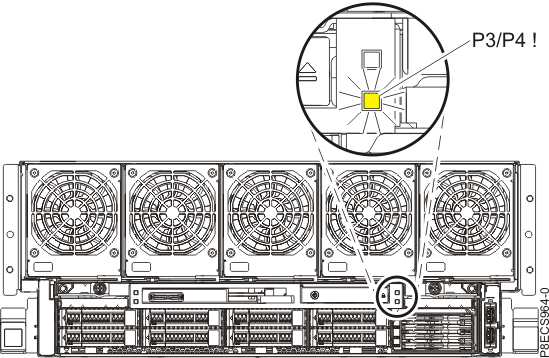

Figure 4. Front P3/P4 ! fault roll-up LED
Front P3/P4 ! fault roll-up LED

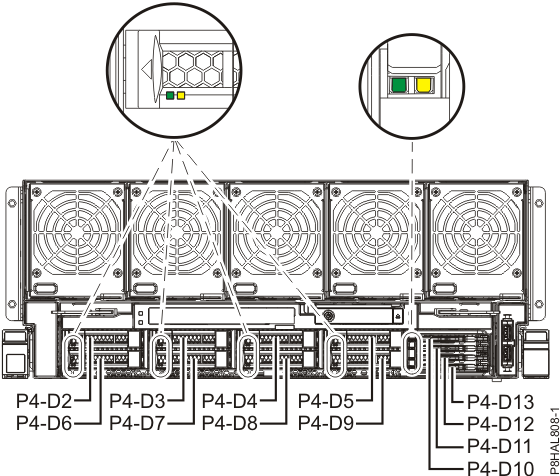

Figure 5. CEC enclosure disk drive LEDs (Model 982)
CEC enclosure disk drive LEDs (Model 982)
Table 3. Interpreting the CEC enclosure disk drive LEDs
Index LED Function Color LED Off LED On LED Flash
Left LED Disk drive activity Green Not active Activity Activity
Right LED Disk drive fault / identify Amber Normal Fault Identify

CEC enclosure top LED indicators

Top LED indicators are not visible on this model. Power is not available to the CEC enclosures when they are in the service position.

CEC enclosure rear LED indicators

Figure 6. Service indicator LEDs
Service indicator LEDs
Table 4. Service indicator LED descriptions
Identifier letter Part description
A I/O backplane LED
B Power midplane LED

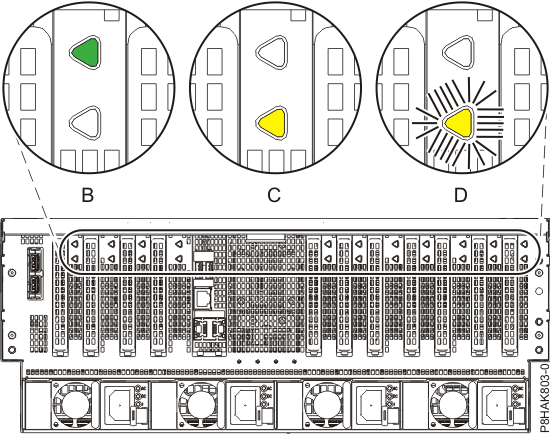

Figure 7. CEC enclosure PCIe adapter slot locations and LEDs (rear view) (model 982)
CEC enclosure PCIe adapter slot locations and LEDs (rear view) (model 982)
Figure 8. Location of the power supplies and LEDs (Model 982, 988)
Location of the power supplies and LEDs (Model 982)
Table 5. Interpreting the power supply LEDs
Index LED Function Color LED Off LED On LED Flash
AC Power supply input good Green No input Input good N/A
DC Power supply DC good Green Standby off On Standby
! Power supply error and identify Amber Normal Fault Identify

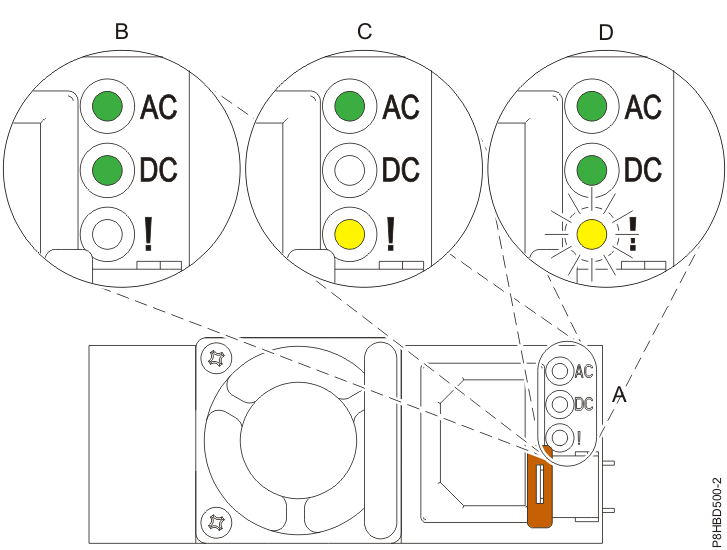

Figure 9. LEDs for a working and failed power supply
LEDs for a working and failed power supply
Table 6. Description of the power supply LED states
AC power LED (Green) DC power LED (Green) Error and identify LED (Amber) Power supply status
On (Solid) On (Solid) Off The power supply is operating correctly. See  B  in Figure 9.
On (Solid) Flashing Off The system is turned off, but the power supply is still connected to the power source. See  B  in Figure 9.
On (Solid) Off On The power supply is not operating correctly. See  C  in Figure 9.
On (Solid) On (Solid) Flashing The faulty or failed power supply was selected by using the identify function. See  D  in Figure 9.
