MAP2250 Local/remote switch-setting is different between RPC cards

The management console received an interrupt from an RPC card that shows the Local/Remote switch-setting changed and the switch-setting is now being reported as different between the two RPCs.

About this task

The actual failure could be one of the following scenarios:

Scenario 1: The switch-setting changed, but one of the RPC cards is not reporting the change.
Scenario 2: The switch-setting did not change, but one of the RPC cards is falsely reporting a change.

Note: When only one RPC card reports a change to the switch-setting, the reported change might be true or false. Use this MAP to determine the switch-setting.

MAP2250 Section-1

Procedure

If you are here to repair a Model 983, exit this MAP and go to MAP2820 Local/remote jumper-setting is different between RPC cards (Model 983). For all other models, go to the next step.
Record the SRC from the serviceable event that sent you here.

Determine and record which RPC card is fenced.

At the upper rear right of Rack-1:
- For Model 941, observe the green LED (left RPC-2 card, C2) and green LED (right RPC-1 card, C1). (Figure 1)
- For Model 951, observe the green LED (left RPC-2 card, C2) and green LED (right RPC-1 card, C1). (Figure 1.)
- For Model 961, observe the green LED (lower RPC-2 card, C2) and green LED (upper RPC-1 card, C1). (Figure 2)
For Model 98x, the RPC-1 card is against the lower rear left side of Rack-1 and the RPC-2 card is against lower rear right side of Rack-1. Observe the green LED (RPC-1 card, C1) and green LED (RPC-2 card, C2). (Figure 3)

Use to continue this repair.

Table 1. Green LED actions
RPC-1 card (C1) green LED is:	RPC-2 card (C2) green LED is:	Serviceable event SRC is:	Go to:
On	On	BE193111 or BE19030A	Proceed as if RPC-1 (C1) is fenced. Go to the next step.
On	On	BE193110 or BE19030C	Proceed as if RPC-2 (C2) is fenced. Go to the next step.
On	On	Not one of the following: BE193110, BE193111, BE19030A, BE19030C	No visual symptom to repair. Exit this procedure and repair the serviceable event that sent you here.
Off	On	Any	Record that the RPC-1 (C1) card is fenced. Go to the next step.
On	Off	Any	Record that the RPC-2 (C2) card is fenced. Go to the next step.
Off	Off	Any	Invalid condition. Exit this procedure and repair any related open serviceable events.

Figure 1. LEDs on the RPC cards (Models 941, 951)

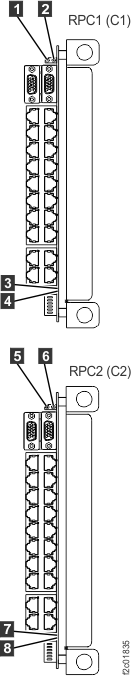

Figure 2. LEDs on the RPC cards (Model 961)

Figure 3. LEDs on the RPC cards (Model 98x)

Record the physical setting of the Local/Remote switch on the LR Switch card (or optional ZLR switch card). These cards are referred to as the LR/ZLR switch card.
Display and record the setting of the Local/Remote switch as reported by the management console.
1. From the navigation area, click Storage Facility Management > storage facility.
2. From the bottom Task area, click Service Utilities > Storage Facility Power Control. The Power Control window opens.
3. At the top left of the screen, record the setting of the Current Local/Remote Switch State.

  Note: For SRCs BE193110, BE193111, BE19030A, and BE19030C: If you receive the error message, "Unable to find storage facility power state.", dismiss the error. Assume that the reported setting of the switch matches the physical setting and continue.

Use the results from the steps above and find the row in Table 2 that matches your condition. Then, use the last column to continue the repair.

Table 2. Repair action for fenced or failing RPC cards
Fenced RPC card (Green LED off) or the SRC that called out this MAP (From steps 2 and 3 above)	LR or ZLR card switch physically set to: (From step 4 above)	Management Console Reports (From step 5 above)	Problem is:	Go to:
RPC-1 (C1) card	Local	Local	RPC-1 (C1) is incorrectly reporting a switch-setting change to Remote.	MAP2250 Section-2
RPC-1 (C1) card	Remote	Local	RPC-2 (C2) is not reporting a switch-setting change to Remote.	MAP2250 Section-3
RPC-1 (C1) card	Local	Remote	RPC-2 (C2) is not reporting a switch-setting change to Local.	MAP2250 Section-4
RPC-1 card (C1) or SRC BE193111, BE19030A	Remote	Remote	RPC-1 (C1) is reporting a switch-setting change to Local.	MAP2250 Section-5
RPC-2 (C2) card	Local	Local	RPC-2 (C2) is incorrectly reporting a switch-setting change to Remote.	MAP2250 Section-6
RPC-2 (C2) card	Remote	Local	RPC-1 (C1) is not reporting a switch-setting change to Remote.	MAP2250 Section-7
RPC-2 (C2) card	Local	Remote	RPC-1 (C1) is not reporting a switch-setting change to Local.	MAP2250 Section-8
RPC-2 card (C2) or SRC BE193110, BE19030C	Remote	Remote	RPC-2 (C2) is reporting a switch-setting change to Local.	MAP2250 Section-9

MAP2250 Section-2

Procedure

The RPC-1 card (C1) is incorrectly reporting the Local/Remote switch-setting. The switch-setting is Local and the last setting the management console detected was Local so the failure caused the RPC-1 card (C1) to incorrectly report the switch-setting as Remote. Use the FRU replace option to replace the following FRUs in the order listed. (Refer to MAP1230 Replace a FRU without using a serviceable event.)

RPC-1 (C1) card
Cable between the RPC-1 (C-1) card and LR/ZLR switch card cable. (The cable is not listed as a FRU, instead select the RPC-1 (C1) card when directed to replace it, replace the cable.)
LR/ZLR switch card

MAP2250 Section-3

Procedure

The RPC-2 (C2) card is incorrectly reporting the switch state. The switch-setting changed to remote but the RPC-2 (C2) card is not reporting the switch change.
Do the following actions:
1. Change the Local/Remote switch to Local.
2. Use the utility option to System Level Deactivate and then System Level Activate the RPC-1 (C1) card.
  Storage Facility Management > storage facility > Service Utilities > Activate/Deactivate Resources > Show Rack Enclosures > (select rack) > U2xxx.xxx.sssssss-C1 (Rack power Control (RPC) Card, State: available > System Level Deactivate
3. Use the FRU replace option to replace the following FRUs in the order listed. For each FRU being replaced, after fix verification completes, change the Local/Remote switch-setting to Remote. (Refer to MAP1230 Replace a FRU without using a serviceable event.)
  1. RPC-2 (C2) card
  2. Cable between the RPC-2 (C2) card and the LR/ZLR switch card. (The cable is not listed as a FRU, instead select the RPC-2 (C2) card when directed to replace it, replace the cable.)
  3. LR/ZLR switch card
Observe the RPC-1 (C1) card green LED. Is the green LED lit?
- Yes, both RPC cards are operational, and the failure is repaired. Exit this MAP and close the serviceable event.
- No, the original failure reoccurred. Return to MAP2250 Section-3 step 1 and replace the next FRU in the list.

MAP2250 Section-4

Procedure

The RPC-2 (C2) card is incorrectly reporting the Local/Remote switch-setting. The management console still reports that the switch-setting is Remote, but the actual switch-setting is Local. That report indicates that the switch-setting changed from Remote to Local and the RPC-2 (C2) card is still reporting a Remote switch-setting.
Do the following actions to further isolate the cause of the failure:
1. Change the Local/Remote switch to Remote. This change makes the switch-setting, as detected by the two RPCs, agree.
2. Use the utility option to System Level Deactivate and then System Level Activate the RPC-1 (C1) card so that the fence is reset and it becomes operational (the green LED is lit).
  Storage Facility Management > storage facility > Service Utilities > Activate/Deactivate Resources > Show Rack Enclosures > (select rack) > U2xxx.xxx.sssssss-C1 (Rack power Control (RPC) Card, State: available > System Level Deactivate
3. Use the utility option to System Level Deactivate the RPC-2 (C2) card.
4. Change the Local/Remote switch-setting back to Local.
5. Disconnect the cable at J204 on the RPC-2 (C2) card. With the cable disconnected, the signal from the switch reports that the switch is in the Local position.
6. Use the utilities to System Level Activate the RPC-2 (C2) card.
Observe the RPC-2 (C2) card green LED. Is the green LED lit?
- Yes, go to the next step.
- No, the RPC-2 (C2) card is failing and is fenced again. Use the replace FRU option to replace the RPC-2 (C2) card. (Refer to MAP1230 Replace a FRU without using a serviceable event.)
Do the following actions:
1. Disconnect the cable at J2 on the LR/ZLR switch card.
2. Reconnect the cable at J204 on RPC-2 (C2) card.
3. Go to the next step.
Observe the RPC-2 (C2) card green LED. Is the green LED lit?
- Yes, RPC-2 (C2) card is not fenced. The LR/ZLR card is failing. Use the replace FRU option to replace the LR/ZLR switch card.
- No, RPC-2 (C2) card is fenced again and the cable between RPC-2 (C2) card and the LR/ZLR switch card is failing. Use the replace FRU option to replace the cable. (Refer to MAP1230 Replace a FRU without using a serviceable event.) (The cable is not listed as a FRU, instead select the RPC-2 (C2) card when directed to replace it, replace the cable.)

MAP2250 Section-5

Procedure

The RPC-1 (C1) card is incorrectly reporting a switch-setting change to Remote. The switch-setting is Remote and the last setting the management console detected was Remote so the failure caused the RPC-1 (C1) card to incorrectly report the switch-setting as Local. The cable between the RPC-1 (C1) card and the LR/ZLR switch card might be loose or disconnected.
Do the following actions:
1. Inspect and correct any problems for the cable connector J5 on the LR/ZLR switch card.
2. Inspect and correct any problems for the cable at connector at J204 on the RPC-1 card.
  Did you find a cable problem and correct it?
  - Yes, to verify the repair, go to the next step.
  - No, go to the next step.
Use the utility option to System Level Deactivate and then System Level Activate the RPC-1 (C1) card.
Storage Facility Management > storage facility > Service Utilities > Activate/Deactivate Resources > Show Rack Enclosures > (select rack) > U2xxx.xxx.sssssss-C1 (Rack power Control (RPC) Card, State: available > System Level Deactivate
Note: Repeat the same menu steps to perform System Level Activate.
- If the System Level Activate is successful, the failure is repaired. Exit this MAP and close the serviceable event.
- If the System Level Activate fails, go to the next step.
Use the replace FRU option to replace the RPC-1 (C1) card. (Refer to MAP1230 Replace a FRU without using a serviceable event.)
Was the FRU verification successful?
- Yes, exit this MAP and close the original serviceable event.
- No, go to the next step.
Use the replace FRU option to replace the cable between the RPC-1 (C1) card and the LR/ZLR switch card. (Refer to MAP1230 Replace a FRU without using a serviceable event.) (The cable is not listed as a FRU, instead select the RPC-1 (C1) card when directed to replace it, replace the cable.)
Was the FRU verification successful?
- Yes, exit this MAP and close the original serviceable event.
- No, go to the next step.
Change the Local/Remote switch to the Local setting.
Use the replace FRU option to replace the LR/ZLR switch card. When the LR/ZLR switch card replacement is complete, return the Local/Remote switch-setting to the Remote setting. After you complete the repair, exit this MAP and close the serviceable event.

MAP2250 Section-6

Procedure

The RPC-2 (C2) card is incorrectly reporting the Local/Remote switch-setting. The switch-setting is Local and the last setting the management console detected was Local, so the failure caused the RPC-2 (C2) card to incorrectly report the switch-setting as Remote. Use the FRU replace option to replace the following FRUs in the order that is listed until the failure is resolved. (Refer to MAP1230 Replace a FRU without using a serviceable event.)

RPC-2 (C2) card
Cable between the RPC-2 (C2) card and LR/ZLR switch card cable. (The cable is not listed as a FRU, instead select the RPC-2 (C2) card when directed to replace it, replace the cable.)
LR/ZLR switch card

MAP2250 Section-7

Procedure

RPC-1 is incorrectly reporting the switch state. The switch-setting changed to remote but RPC-1 is not reporting the switch change.
Do the following actions:
1. Change the Local/Remote switch to Local.
2. Use the utility option to System Level Deactivate and then System Level Activate the RPC-2 (C2) card.
  Storage Facility Management > storage facility > Service Utilities > Activate/Deactivate Resources > Show Rack Enclosures > (select rack) > U2xxx.xxx.sssssss-C2 (Rack power Control (RPC) Card, State: available > System Level Deactivate
3. Use the replace FRU option to replace each of the FRUs in the order listed. For each FRU being replaced, after fix verification completes, change the Local/Remote switch-setting to Remote. (Refer to MAP1230 Replace a FRU without using a serviceable event.)
  - RPC-1 (C1) card
  - Cable between the RPC-1 (C1) card and the LR/ZLR switch card. (The cable is not listed as a FRU, instead select the RPC-2 (C2) card when directed to replace it, replace the cable.)
  - LR/ZLR switch card
Observe the RPC-2 (C2) card green LED.
Is the green LED lit?
- Yes, both RPCs are operational. The failure is repaired. Exit this MAP and close the serviceable event.
- No, the original failure reoccurred. Return to MAP2250 Section-7 step 1 and replace the next FRU in the list.

MAP2250 Section-8

Procedure

The RPC-1 (C1) card is incorrectly reporting the Local/Remote switch-setting. The management console still reports that the switch-setting is Remote, but the actual switch-setting is Local. That indicates the switch-setting was changed from Remote to Local and the RPC-1 (C1) card is still reporting a Remote switch-setting. Do the following action to further isolate the cause of the failure:
1. Change the Local/Remote switch to Remote. This change makes the switch-setting, as detected by the two RPC cards, agree.
2. Use the utilities to System Level Deactivate and then System Level Activate the RPC-2 (C2) card so that the fence is reset and it becomes operational (the green LED is lit).
  Storage Facility Management > storage facility > Service Utilities > Activate/Deactivate Resources > Show Rack Enclosures > (select rack) > U2xxx.xxx.sssssss-C1 (Rack power Control (RPC) Card, State: available > System Level Deactivate
3. Use the utilities to System Level Deactivate the RPC-1 (C1) card.
4. Change the Local/Remote switch-setting back to Local.
5. Disconnect the cable at J204 on the RPC-1 (C1) card. With the cable disconnected, the signal from the switch reports that the switch is in the Local position.
6. Use the utilities to System Level Activate the RPC-1 (C1) card.
Observe the RPC-1 (C1) card green LED.
Is the green LED lit?
- Yes, go to the next step.
- No, the RPC-1 (C1) card is failing and is fenced again. Use the replace FRU option to replace the RPC-1 (C1) card.
Complete the following steps:
1. Disconnect the cable at J2 on the LR/ZLR switch card.
2. Reconnect the cable at J204 on the RPC-1 (C1) card.
3. Go to the next step.
Observe the RPC-2 (C2) card green LED.
Is the green LED lit?
- Yes, the RPC-1 (C1) card is not fenced. The LR/ZLR switch card is failing. Use the replace FRU option to replace the LR/ZLR switch card.
- No, the RPC-1 (C1) card is fenced again and the cable between the RPC-1 (C1) card and the LR/ZLR switch card is failing. Use the replace FRU option to replace the cable. (The cable is not listed as a FRU, instead select the RPC-1 (C1) card when directed to replace it, replace the cable.)

MAP2250 Section-9

Procedure

The RPC-2 (C2) card is incorrectly reporting a switch-setting change to Remote. The switch-setting is Remote and the last setting the management console detected was Remote so the failure caused the RPC-2 (C2) card to incorrectly report the switch-setting as Local. The cable between the RPC-2 (C2) card and the LR/ZLR switch card might be loose or disconnected.
Do the following actions:
1. Inspect and correct any problems for the cable connector J6 on the LR/ZLR switch card.
2. Inspect and correct any problems for the cable at connector at J204 on the RPC-2 (C2) card.
  Did you find a cable problem and correct it?
  - Yes, to verify the repair, go to the next step.
  - No, go to the next step.
Use the utility option to System Level Deactivate and then System Level Activate the RPC-1 (C1) card.
Storage Facility Management > storage facility > Service Utilities > Activate/Deactivate Resources > Show Rack Enclosures > (select rack) > U2xxx.xxx.sssssss-C1 (Rack power Control (RPC) Card, State: available > System Level Deactivate
Note: Repeat the same menu steps to perform System Level Activate.
- If the System Level Activate is successful, the failure is repaired. Exit this MAP and close the serviceable event.
- If the System Level Activate fails, go to the next step.
Use the replace FRU option to replace the RPC-2 card. (Refer to MAP1230 Replace a FRU without using a serviceable event.)
Was the FRU verification successful?
- Yes, exit this MAP and close the original serviceable event.
- No, go to the next step.
Use the replace FRU option to replace the cable between RPC-2 and the LR/ZLR switch card. (Refer to MAP1230 Replace a FRU without using a serviceable event.) (The cable is not listed as a FRU, instead select the RPC-2 (C2) card when directed to replace it, replace the cable.)
Was the FRU verification successful?
- Yes, exit this MAP and close the original serviceable event.
- No, go to the next step.
Change the Local/Remote switch to the Local setting.
Use the replace FRU option to replace the LR/ZLR switch card (cpLRcard). When the LR/ZLR switch card replacement is complete, return the Local/Remote switch-setting to the Remote setting. After you complete the repair, exit this MAP and close the serviceable event.
