MAP3250 FC-AL cable check detected cross-connected cables at a device adapter card

Use this MAP to determine whether or not a cable is correctly connected.

About this task

Two or more FC-AL cables are cross-connected at an I/O enclosure device adapter card.

MAP3250 Section-1

Procedure

  1. Two or more FC-AL cables are reported as cross-connected at the device adapter card listed in the FRU list. At the device adapter card listed in the FRU list, observe the FC-AL cable labels. See Figure 1, Figure 2, or Figure 3.
    Note: If the FRU list contains FC-AL cables, they are listed for informational purposes only. Any cables listed should be in pairs. If an odd number of cables is listed, look for an FC-AL that is not connected to the DA card and is hanging free. In all cases, continue with this procedure as if the cables were not listed.

    Are the cables cross-connected?

    • Yes, go to the next step.
    • No, stop and contact your next level of support. This may be a false error.

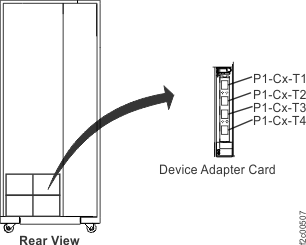

    Figure 1. Model 941/94E, location codes for the device adapter card
    Location codes on the device adapter card

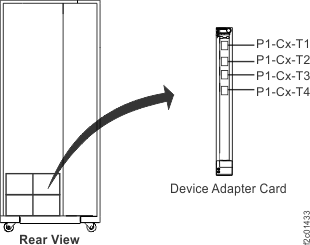

    Figure 2. Model 951/95E, 961/96E location codes for the device adapter card
    Model 951 Location codes for the device adapter card
    Figure 3. Models 98x, location codes for the device adapter card
    Location codes for the device adapter card SAS ports
  2. Use the normal FRU exchange process to do a pseudo repair of the I/O enclosure device adapter card in the FRU list. Do not replace the I/O enclosure device adapter card when instructed by the repair process. Instead, correct the cable or cables that are not connected correctly and then continue with normal repair process.
    1. Read all of the following substeps before going to substep b, which will close this service information center window. To view this MAP in a separate information center window, click Help in the upper right corner of the main HMC GUI screen and navigate to the MAP.
    2. Click Close in the current service information center window.
    3. One or more HMC repair screens might prompt you for the result of using the service procedure in the MAP. Select Problem not fixed.
    4. Select No when prompted for whether you exchanged any parts.
    5. Select Yes when prompted for whether you isolated the problem.
    6. Select the I/O Enclosure Device Adapter Card from the FRU list. The HMC begins the FRU exchange process for the selected FRU.
  3. If the pseudo repair does not fix the problem, contact your next level of support.
