MAP32D1 Storage enclosure installation failed - flash drive error (24 drive slots, 2.5 inches)

MAP32D1 Section-1

Procedure

Refer to the serviceable event FRU list that sent you here.
1. For each drive in the FRU list, read the location code. The location code is the special format that is used during MES and installations.
  An example of a location code is Rw-Fx-P1-Dz, where:
  - w = 1-3, the rack number
  - x = 01-12, storage enclosure location, top to bottom
  - z = slot 1-24, the drive slot location
2. For each location code, locate the physical location by using Figure 1 for drive slot location along with #map32d0section-1__rack13_front through #map32d0section-1__rack12_88_front at the end of this procedure for rack and storage enclosure location.

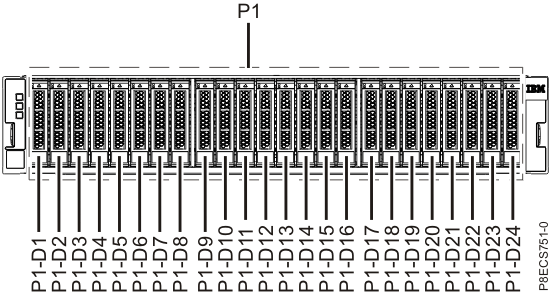

Figure 1. Storage enclosure locations (front view) (SAS flash enclosure, 24 drive slots)
The normal serviceable event FRU replace procedure cannot be used. The code objects are not yet created because the installation failed. Continue to the following step:
1. Replace each drive in the FRU list with a new drive now or correctly insert the existing drive if it has not been properly inserted. The drive can be hot-plugged without damage to the storage enclosure and drive.
Is the drive activity LED indicator lit solid or flashing?
- Yes, go to the next step.
- No, try reseating the drive. If it still fails, replace the drive with another new drive. If it still fails, replace the storage enclosure midplane FRU.
  Continue to the next step.
  Note: You cannot use normal guided maintenance to replace the midplane because the installation failed before all the code objects were created. Instead, remove all power from the storage enclosure and refer to Exchange the storage enclosure midplane. After the new midplane is installed, reconnect all storage enclosure power.

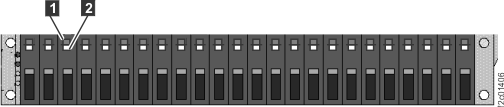

Figure 2. Drive module LEDs

Are there any other open serviceable events for the storage enclosures that you are installing?

Yes, there are other open serviceable events for the storage enclosures that are being installed. Find
the SRCs for the serviceable events in Table 1, and take the appropriate action.
No, there are no other open serviceable events for the storage enclosures that are being installed (besides the BE34004D, BE340080, BE340102, or BE3400AA that called this MAP).
Go to step 5.

Table 1. Open serviceable events for storage enclosures that are being installed
SRC	Action
BE34004D, BE340080, BE340102, or BE3400AA	Replace the listed drive FRUs for all BE34004D, BE340080, BE340102, or BE3400AA by hot-plugging. Then, go to step 5.
BE1E2010 or BE1E218C	If the serviceable event occurred as part of the failed storage enclosure installation, close it (with BE34004D, BE340080, or BE3400AA) in step 5. Otherwise, contact your next level of support.
Other SRCs for the storage enclosure that is being installed	Contact your next level of support.

Close the open serviceable events for the storage enclosures that are being installed. This includes any BE1E2010 or BE1E218C that occurred as part of the failed storage enclosure installation.
Resolve any other open serviceable events.
Retry the storage enclosure installation procedure:
1. The installation process installs the storage enclosures and provides a "FRU verification test" for the drives you replaced. If the installation fails with the same SRC and drive(s), contact your next level of support.
2. Exit this procedure and complete the installation.

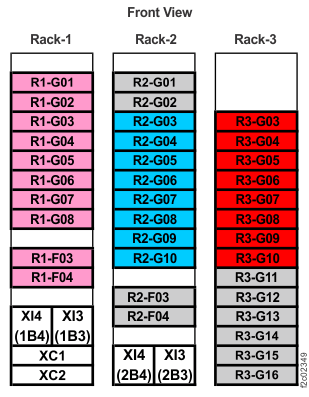

Figure 3. Rack 1-3 storage enclosure and I/O enclosure location codes (Models 984, 84E) (front view)

Note: High-performance flash enclosures are in Rack-1 and Rack-2.

Figure 4. Rack 1 storage enclosure and I/O enclosure location codes (Model 984 all-flash) (front view)

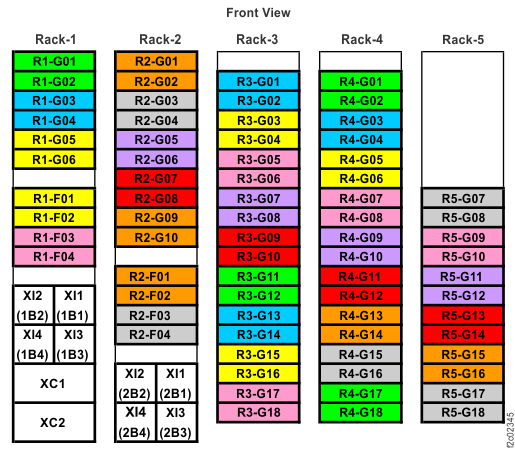

Figure 5. Rack 1-5 storage enclosure and I/O enclosure location codes (single-phase Models 985, 85E) (front view)

Note: High-performance flash enclosures are in Rack-1 and Rack-2.

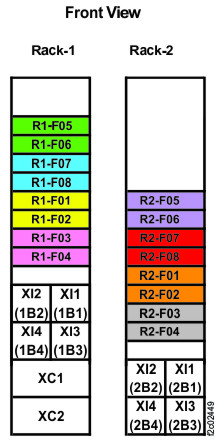

Figure 6. Rack 1-2 storage enclosure and I/O enclosure location codes (single-phase Models 985, 85E all-flash) (front view)

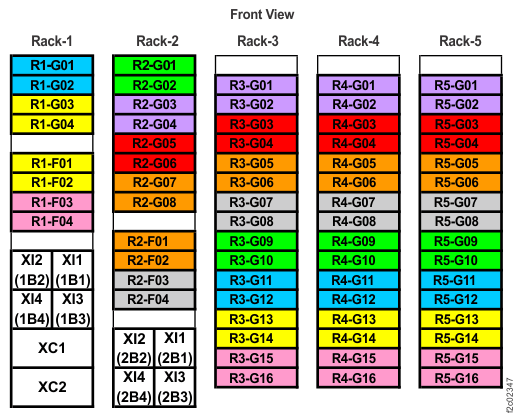

Figure 7. Rack 1-5 storage enclosure and I/O enclosure location codes (three-phase Models 986, 86E) (front view)

Note: High-performance flash enclosures are in Rack-1 and Rack-2.

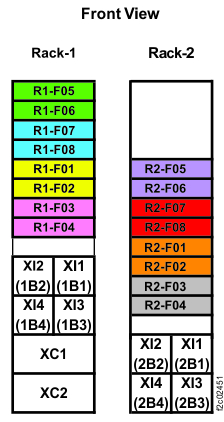

Figure 8. Rack 1-2 storage enclosure and I/O enclosure location codes (three-phase Models 986, 86E all-flash) (front view)

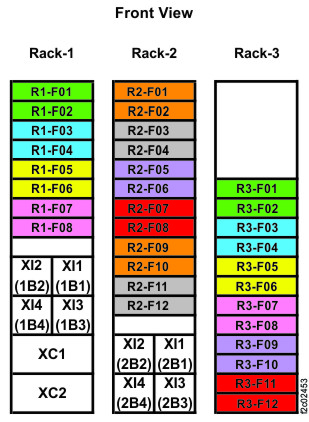

Figure 9. Rack 1-3 storage enclosure and I/O enclosure location codes (Models 988, 88E all-flash) (front view)
