Model 961 with eight I/O enclosures in single rack

Use the point-to-point cabling diagram to route the PCIe cables in a Model 961.

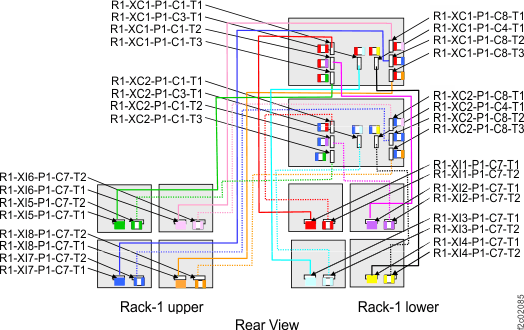

Figure 1. Model 961, eight I/O enclosures in single rack
Model 961, eight I/O enclosures in single rack
Table 1. PCIe Cabling (Model 961 with eight I/O enclosures in single rack)
From CEC R1-XC1 To Rack 1 I/O Enclosure Cable FRU P/N
R1-XC1-P1-C1-T1 (1B1) R1-XI1-P1-C7-T1 46X7129
R1-XC1-P1-C1-T2 (1B2) R1-XI2-P1-C7-T1 46X7129
R1-XC1-P1-C3-T1 (1B3) R1-XI3-P1-C7-T1 46X7129
R1-XC1-P1-C4-T1 (1B4) R1-XI4-P1-C7-T1 46X7129
From CEC R1-XC1 To Rack 2 I/O Enclosure Cable FRU P/N
R1-XC1-P1-C1-T3 (1B5) R1-XI5-P1-C7-T1 46X7129
R1-XC1-P1-C8-T1 (1B6) R1-XI6-P1-C7-T1 46X7129
R1-XC1-P1-C8-T2 (1B7) R1-XI7-P1-C7-T1 46X7129
R1-XC1-P1-C8-T3 (1B8) R1-XI8-P1-C7-T1 46X7129
From CEC R1-XC2 To Rack 1 I/O Enclosure Cable FRU P/N
R1-XC2-P1-C1-T1 (1B1) R1-XI1-P1-C7-T2 46X7129
R1-XC2-P1-C1-T2 (1B2) R1-XI2-P1-C7-T2 46X7129
R1-XC2-P1-C3-T1 (1B3) R1-XI3-P1-C7-T2 46X7129
R1-XC2-P1-C4-T1 (1B4) R1-XI4-P1-C7-T2 46X7129
From CEC R1-XC2 To Rack 2 I/O Enclosure Cable FRU P/N
R1-XC2-P1-C1-T3 (1B5) R1-XI5-P1-C7-T2 46X7129
R1-XC2-P1-C8-T1 (1B6) R1-XI6-P1-C7-T2 46X7129
R1-XC2-P1-C8-T2 (1B7) R1-XI7-P1-C7-T2 46X7129
R1-XC2-P1-C8-T3 (1B8) R1-XI8-P1-C7-T2 46X7129
