Rack power and cooling part numbers, Models 98x, 8xE

This topic presents information on rack power and cooling part numbers for the following models:
  • Base rack models 980, 981, 982, 984, 985, 986, 988
  • Expansion rack models 98B, 98E, 98F, 84E, 85E, 86E, 88E
Use Table 1 as a directory for rack power and cooling parts.
Note: The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts-ordering system recognizes all valid part numbers and automatically substitutes an available part number as needed.
Table 1. Start here, rack power and cooling (Models 98x, 8xE)
Part name Figure
DC-UPS battery service module (BSM) set Figure 1
Figure 2
DC-UPS DC supply unit (DSU) Figure 4
Figure 5
DC-UPS fan assembly Figure 4
Figure 5
Local remote switch card Figure 6
Figure 7
Power adapter, 12V Figure 6
Power distribution unit (PDU) Figure 6
Figure 7
Power junction assembly (PJA) Figure 6
Figure 7
Power junction assembly, direct (direct PJA Figure 7
Rack identity card Figure 6
Figure 7
RPC card Figure 6
Figure 7
All other parts (See the appropriate figure below.)

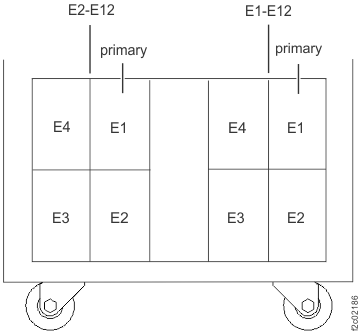

Figure 1. DC-UPS battery service module (BSM) set locations (Models 98x and 8xE, single-phase power) (front)
Battery service module (BSM) set locations (Models 98x) (front)

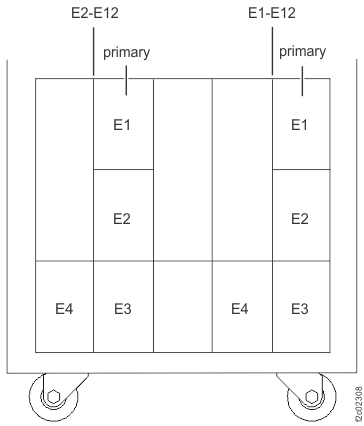

Figure 2. Battery service module (BSM) set locations (Models 98x and 8xE, three-phase power) (front)
Battery service module (BSM) set locations (Models 98x, three-phase power) (front)
Figure 3. BSM set enclosure cover (Models 98x and 8xE, single-phase power) (front)
BSM set enclosure cover (Models 98x, single-phase power) (front)
Note: BSM set enclosure cover for single-phase power configuration shown, enclosure cover for three-phase power is similar.
Table 2. DC-UPS battery service module (BSM) set parts (Models 98x, 8xE)
Index Part name Part number
N/A BSM set power and signal cable (included with BSM set)
E1-E12, E2-E12 DC-UPS battery service module (BSM) set (1 primary and 3 secondary modules) (single-phase 98x and 8xE, 96x) 98Y3997
E1-E12, E2-E12 DC-UPS battery service module (BSM) set (1 primary and 3 secondary modules) (required for three-phase 98x and 8xE, compatible with single-phase 98x and 8xE, and with 96x) 00YM903
N/A DC-UPS battery service module (BSM) set screw (included with BSM set)
N/A BSM set enclosure cover (single-phase power) (1 per rack) (also known as "DC-UPS front cover") 98Y7737
N/A BSM set enclosure cover (three-phase power) (1 per rack) (also known as "DC-UPS front cover") 98Y8820
N/A DVD tray bucket 98Y7741
Figure 4. Location codes for the DC-UPS (Models 98x and 8xE, single-phase power) (rear)
Location codes for the DC-UPS (Models 98x) (rear)
Figure 5. Location codes for the DC-UPS (Models 98x and 8xE, three-phase power) (rear)
Location codes for the DC-UPS (three-phase Models 98x) (rear)
Table 3. DC-UPS DC supply unit (DSU) parts (Models 98x, 8xE)
Index Part name Part number
E1-E1, E2-E1 ( Figure 4) DC-UPS DC supply unit (DSU) (single-phase) 98Y8403
E1-E1, E2-E1 (Figure 5) DC-UPS DC supply unit (DSU) (three-phase) 98Y8585
A1 ( Figure 4) DC-UPS fan assembly (single-phase) 98Y7066
A1 (Figure 5) DC-UPS fan assembly (three-phase) 98Y1610
Figure 6. Models 980, 981, 982 base rack locations
Note: Locations for models 980, 981, 982 are shown. DC-UPS locations are similar for models 98x and 8xE.
Model 980, 981, 982 base rack locations
Figure 7. Model 984, 985, 986, 988 base rack locations
Note: Rack-1 shown. PJAs E51, E52, E53, and E54 can also be present in Rack-2. DC-UPS locations are similar for models 98x and 8xE.
Model 984, 985, 986, 988 base rack locations
Table 4. RPC cards (Models 98x)
Index Part name Part number
C1, C2 RPC card 98Y6950
Table 5. Rack identity card and local remote card (Models 98x, 8xE)
Index Part name Part number
C5 Rack identity card 98Y5401
C6 Card, local remote switch (Z2LS) 98Y6602
Table 6. Power distribution units (Models 98x, 8xE)
Location Part name Part number
E21, E22 Power distribution unit (PDU), 12 receptacles, longer input cables (1.4 - 1.6 m) 98Y7470
E23, E24 Power distribution unit (PDU), 12 receptacles, shorter input cables (0.9 - 1.1 m) 98Y7471
Table 7. 12V power adapters (Models 98x)
Location Part name Part number
E31, E32, E33, E34, E35, E36
Figure 6		 12V power adapter FRU (models 96x and 98x) 01DH957
Table 8. Power junction assemblies (Models 98x, 8xE)
Location Part name Part number
E41, E42 Power junction assembly (PJA) (models 980, 981, 982) 98Y7138
E41, E42 Power junction assembly (PJA) (models 984, 985, 986, 988) 98Y9323
E51, E52 Power junction assembly, direct (direct PJA) (models 984, 84E, 985, 85E, 986, 86E, 988, 88E) 98Y9324
E53, E54 Power junction assembly, direct (direct PJA) (models 985, 85E, 986, 86E, 988, 88E) 98Y9324
