Exchange the CEC enclosure PCIe four port card

Before you begin

Icon for electrostatic discharge wrist strapUse approved ESD procedures to prevent damage.

Attention:
  • This procedure is not a stand-alone procedure. Customer disruption and damage to the hardware might occur when microcode and power boundaries are not in the proper conditions for this service action.
  • If a serviceable event FRU repair directed you to this procedure, the microcode and power boundaries are already set.
  • If a serviceable event FRU repair did not direct you to this procedure, see MAP1230 Replace a FRU without using a serviceable event.
Notes:
  • All the cables and FRUs to be removed must be uniquely identified so they can be reinstalled correctly.
  • If an installed earthquake resistance kit prevents you from accessing this FRU, refer to MAP1600.

Remove the CEC enclosure PCIe four port card

Procedure

  1. Verify that the CEC enclosure is in the "power off" state before you continue. (The CEC enclosure should already be in the power off state.)
    Note: If this FRU has a FRU identify indicator LED, it is no longer lit.

    If you have not already located the FRU to be replaced, use the location code listed in the serviceable event FRU list. See MAP1245 Finding FRUs by using location codes.

  2. At the rear of the storage facility, view both CEC enclosure power supplies.
    Figure 1. CEC enclosure DC good LEDs
    CEC enclosure DC good LEDs

    Are both DC GOOD LEDs flashing?

  3. Use a replacement part with a valid DS8000® part number to ensure that the DS8000-unique firmware is already installed and configured.

    Attempting to use a generic part from an eServer™ will fail and complicate the repair.

  4. Remove all power from the CEC enclosure.
    • At the rear of the CEC enclosure, disconnect the power input cables Callout label A to both CEC enclosure power supplies.
    • At the CEC enclosure control panel, observe the green Power® Present icon, beneath the white Power button.
      • If it is slow flashing, the CEC enclosure is still in the power-off state. DO NOT CONTINUE. Ensure that you have unplugged the power cables.
      • If it is off, go to the next step.
    Figure 2. CEC enclosure (rear)
    CEC enclosure (rear)
  5. Verify that the PCIe cables are properly labeled, then disconnect them from the PCIe four port card.
    Gently pull on the green release handle and then unplug the cable.
  6. Remove the PCIe four port card.
    • Unscrew the latch screw Callout label A.
    • Pull the latch toward you and down to release the PCIe four port card Callout label B.
    • Pull the PCIe four port card from the enclosure.

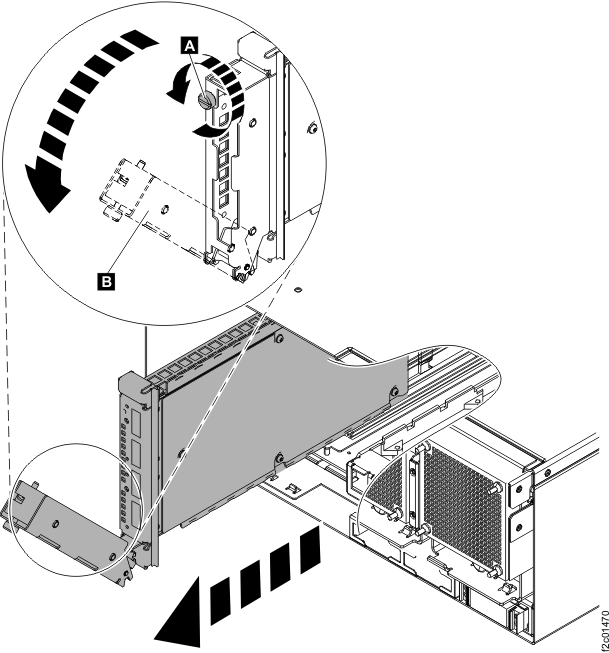

    Figure 3. Removing the PCIe four port card
    Removing the PCIe multi-port

Install the CEC enclosure PCIe four port card

Procedure

  1. At the rear of the CEC enclosure, replace the PCIe four port card.
    • With the latch in the down position, slide the card in to the enclosure.
    • When it stops, raise the latch to the vertical position.
    • Install the latch screw.
  2. Connect the PCIe cables.
  3. At the rear of the CEC enclosure, connect the power input cable to both CEC enclosure power supplies.
  4. Ensure that the CEC enclosure is in the power-off state before you continue. At the CEC enclosure control panel, wait for the green Power Present icon, beneath the white Power button to slow blink, and then continue the repair.
  5. Exit this service information center parts exchange procedure and return to the procedure that sent you here.
