Exchange the rack operator panel LED assembly

Before you begin

Icon for electrostatic discharge wrist strapUse approved ESD procedures to prevent damage.

Attention:
  • This procedure is not a stand-alone procedure. Customer disruption and damage to the hardware might occur when microcode and power boundaries are not in the proper conditions for this service action.
  • If a serviceable event FRU repair directed you to this procedure, the microcode and power boundaries are already set.
  • If a serviceable event FRU repair did not direct you to this procedure, see MAP1230 Replace a FRU without using a serviceable event.
Notes:
  • All the cables and FRUs to be removed must be uniquely identified so they can be reinstalled correctly.
  • If an installed earthquake resistance kit prevents you from accessing this FRU, refer to MAP1600.

Remove the rack operator panel LED assembly

Procedure

  1. The rack operator panel LED assembly can be hot-plugged.
  2. At the front of the rack, open the front cover.
  3. Disconnect the cable Callout label 1 from the rack operator panel LED assembly. See Figure 1.
  4. Remove the screw Callout label 2 and then remove the rack operator panel LED assembly. See Figure 1.

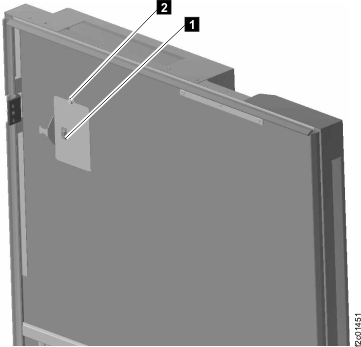

    Figure 1. Rack operator panel LED assembly
    Rack operator panel LED assembly

Install the rack operator panel LED assembly

Procedure

  1. Install the LED assembly in place with the screw. See Figure 1.
  2. Connect the cable to the LED assembly. See Figure 1.
  3. Exit this service information center parts exchange procedure and return to the procedure that sent you here.
