Storage enclosure part numbers, Models 98x, 8xE (FC/SAS, 24 drive slots)

Information about storage enclosure parts is presented in this topic. Use Table 1 as a directory.

Note: The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts-ordering system recognizes all valid part numbers and automatically substitutes an available part number as needed.
Table 1. Start here, storage enclosure parts, 24 DDM slots (Models 98x, 8xE)
Part name Figure
Cables, Fibre Channel (FC-AL), optical Table 4
Disk drive dummy module Figure 1
Disk drive module (DDM) Figure 1
Fibre Channel interface card (FCIC), optical Figure 2
Solid-state disk (SSD) Figure 1
Storage enclosure midplane Figure 1
All other parts See the appropriate figure.

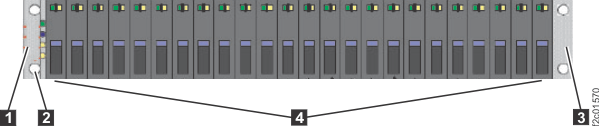

Figure 1. Storage enclosure parts, front
Storage enclosure parts, front
Table 2. Storage enclosure parts, front, 24 DDM slots (Models 98x, 8xE)
Index Part name CCIN
(note 1)		 Part number Allowable substitute CCINs
(note 2)
1 Left decorative bezel N/A 99Y0098 N/A
2 Screw, M5 x 16 Hex N/A 23R1521 N/A
3 Storage enclosure midplane (full chassis) GPBP 45W8703 None
4 Disk drive dummy module N/A 45W8680 N/A
4 Disk drive module (DDM), 146 GB 15 K RPM, self-encrypting I14C 45W3950 I14L
4 Disk drive module (DDM), 146 GB 15 K RPM, self-encrypting, category 3 (note 2) I14L 00ND145 None
4 Solid State Disk (SSD), 200 GB, self-encrypting P201 98Y6382 None
4 Disk drive module (DDM), 300 GB 15 K RPM, self-encrypting I30C 45W9615 I30L
4 Disk drive module (DDM), 300 GB 15 K RPM, self-encrypting, category 3 (note 2) I30L 98Y6320 None
4 Solid State Disk (SSD), 400 GB, self-encrypting P401 99Y1329 None
4 Disk drive module (DDM), 600 GB 10 K RPM, self-encrypting I60B 45W7734 I60F, I60K
4 Disk drive module (DDM), 600 GB 10 K RPM, self-encrypting, category 2 (note 2) I60F 00ND126 I60K
4 Disk drive module (DDM), 600 GB 10K RPM, self-encrypting, category 3 (note 2) I60K 01NN786 None
4 Disk drive module (DDM), 600 GB 15 K RPM, self-encrypting I60C 98Y6017 None
4 Solid State Disk (SSD), 800 GB, self-encrypting P801 98Y6031 None
4 Disk drive module (DDM), 1.2 TB 10 K RPM, self-encrypting I1CB 98Y6032 I1CF, I1CK
4 Disk drive module (DDM), 1.2 TB 10 K RPM, self-encrypting, category 2 (note 2) I1CF 00ND132 I1CK
4 Disk drive module (DDM), 1.2 TB 10K RPM, self-encrypting, category 3 (note 2) I1CK 01NN788 None
4 Solid State Disk (SSD), 1.6 TB, self-encrypting P1G1 00ND100 None
4 Disk drive module (DDM), 1.8 TB 10 K RPM, 4k block, self-encrypting B1IB 00ND135 B1IF
4 Disk drive module (DDM), 1.8 TB 10K RPM, 4k block, self-encrypting, category 2 (note 2) B1IF 01NN790 None
Notes:
  1. Important, read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, check whether the parts-ordering system has a conditional substitute for DS8000® series. CCINs that are in parentheses are reported by earlier levels of the LIC bundle.
  2. For DDMs and SSDs with multiple CCINs for same size and speed, replace with a different CCIN only if that CCIN appears in the column Allowable substitute CCINs.

Figure 2. Storage enclosure parts, rear
Storage enclosure parts, rear
Table 3. Storage enclosure parts, rear, 24 DDM slots (Models 98x, 8xE)
Index Part name CCIN1 Part number
1 Fibre Channel interface card (FCIC), optical GPIC 45W8405
2 Storage enclosure power supply EPS1 45W8229
Notes:
  1. Important, read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, check whether the parts-ordering system has a conditional substitute for DS8000 series. CCINs that are in parentheses are reported by earlier levels of the LIC bundle.
Figure 3. Storage enclosure Fibre Channel (FC-AL) cables, rear (T1, T2, T3, T4 connectors)
Storage enclosure locations rear (model 951/95E)
Figure 4. The format of information on a cable bundle label
The format of information on a cable bundle label
CAUTION:
Cables must be replaced only one at a time by using the appropriate guided maintenance procedure.
Table 4. Fibre Channel (FC-AL) cables, optical (Models 98x, 8xE)
Index Part name CCIN1 Part number
1 Cable, Fibre Channel (FC-AL), optical, orange, 1.3 m (4 ft. 3 in.)2, 3 OCBL 45W8817
2 Cable, Fibre Channel (FC-AL), optical, blue, 2.5 m (8 ft. 2 in.)2 OCBL 45W8818
3 Cable, Fibre Channel (FC-AL), optical, blue, 5.6 m (18 ft. 4 in.)2 OCBL 45W8819
4 Cable, Fibre Channel (FC-AL), optical, blue, 26.0 m (85 ft. 4 in.)2 OCBL 98Y5406
5 Cable, Fibre Channel (FC-AL), optical, green, 940 mm (3 ft. 1 in.)2, 4 OCBL 98Y5572
6 Cable, Fibre Channel (FC-AL), optical, green, 2.3 m (7 ft. 7 in.)2, 4 OCBL 98Y5573
7 Cable, Fibre Channel (FC-AL), optical, green, 4.5 m (14 ft. 9 in.)2, 4 OCBL 98Y5574
8 Cable, Fibre Channel (FC-AL), optical, green, 6.3 m (20 ft. 8 in.)2, 4 OCBL 98Y5575
Notes:
  1. Important, read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, check if the parts-ordering system has a conditional substitute for DS8000 series.
  2. Fibre Channel cables are bundled in groups from the factory. Each bundle contains custom-length cables that are individually labeled for specific racks, enclosures, and connectors. The cable bundles cannot be ordered as FRUs. There are individual FRU cables that can be ordered; each is a different length and without location labels. Find the part number on the cable bundle that contains the cable that must be replaced. The parts-ordering system converts the cable bundle part number to a single cable part number that is longer than the longest cable in the cable bundle.
  3. Only used in rack-1 rack configuration: AB1, "business class" cabling.
  4. Only used in models 980, 98B, 984, 84E, and rack configuration: AB2, 96B, 96C, and 96D, "business class."
