Storage enclosure part numbers, Models 98x, 8xE (SAS flash enclosure, 24 drive slots)

For information about storage enclosure parts, use Table 1 as a directory.

Note: The following part numbers are the most recent for this version of the Parts Catalog. Your storage facility or serviceable event FRU list might contain an older or newer part number. The parts-ordering system recognizes all valid part numbers and automatically substitutes an available part number as needed.
Table 1. Start here, storage enclosure parts (SAS flash enclosure, 24 drive slots)
Part name Figure
Cables, serial attached SCSI (SAS) Table 4
Disk and flash drive filler (dummy module) Figure 2
Drive module (SAS flash drive / SSD) Figure 2
Enclosure services manager (ESM) Figure 2, Figure 3
Power supply Figure 2, Figure 3
Storage enclosure midplane Figure 2
All other parts See the appropriate figure.

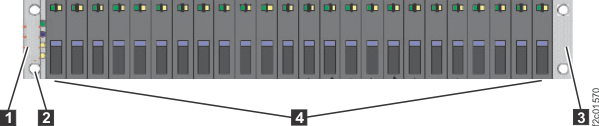

Figure 1. Storage enclosure parts, front
Storage enclosure parts, front

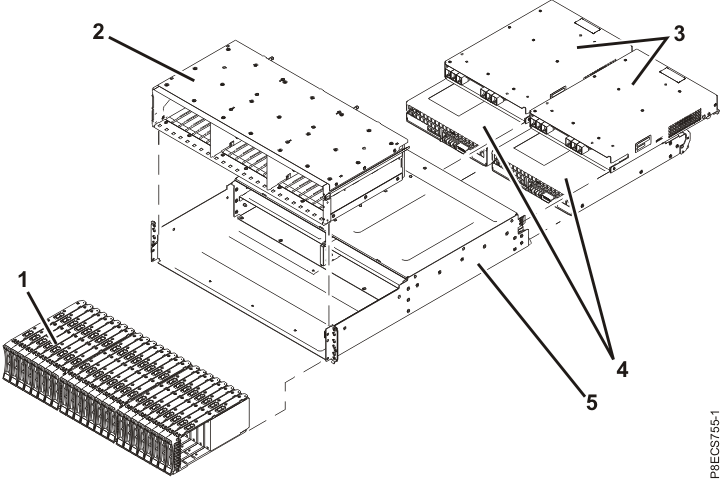

Figure 2. Storage enclosure parts, assembly view (SAS flash enclosure, 24 drive slots)
Storage enclosure parts, assembly view (SAS flash enclosure, 24 drive slots)
Table 2. Storage enclosure parts, front (SAS flash enclosure, 24 drive slots)
Index Part name CCIN
(note 1)		 Part number Allowable substitute CCINs
(note 2)
1 (Figure 1) Left decorative bezel N/A 01DH721 N/A
2 (Figure 1) Screw, M5 x 16 Hex Storage enclosure midplane N/A 23R1521 N/A
2 (Figure 2) Storage enclosure midplane 01LT139 None
1 (Figure 2) Disk and flash drive filler (dummy module) N/A 45W8680 N/A
1 (Figure 2) Flash drive, 400 GB, flash tier 0, self-encrypting V401 00YY002 V402
1 (Figure 2) Flash drive, 400 GB, flash tier 0, self-encrypting, category 2 (note 2) V402 01NN824 None
1 (Figure 2) Flash drive, 800 GB, flash tier 0, self-encrypting V801 00YY004 V802
1 (Figure 2) Flash drive, 800 GB, flash tier 0, self-encrypting, category 2 (note 2) V802 01NN826 None
1 (Figure 2) Flash drive, 1.6 TB, flash tier 0, self-encrypting V1G1 00YY006 V1G2
1 (Figure 2) Flash drive, 1.6 TB, flash tier 0, self-encrypting, category 2 (note 2) V1G2 01NN828 None
1 (Figure 2) Flash drive, 1.92 TB, flash tier 2, self-encrypting H1J1 01NN844 None
1 (Figure 2) Flash drive, 3.2 TB, flash tier 0, self-encrypting V3C1 00YY010 V3C2
1 (Figure 2) Flash drive, 3.2 TB, flash tier 0, self-encrypting, category 2 (note 2) V3C2 01NN830 None
1 (Figure 2) Flash drive, 3.84 TB, flash tier 1, self-encrypting H3I1 01NN772 H3I2, H3I3
1 (Figure 2) Flash drive, 3.84 TB, flash tier 1, self-encrypting, category 2 (note 2) H3I2 01NN804 H3I3
1 (Figure 2) Flash drive, 3.84 TB, flash tier 1, self-encrypting, category 3 (note 2) H3I3 01NN842 None
1 (Figure 2) Flash drive, 7.68 TB, flash tier 2, self-encrypting H7G1 01ML224 H7G2
1 (Figure 2) Flash drive, 7.68 TB, flash tier 2, self-encrypting, category 2 (note 2) H7G2 01NN832 None
1 (Figure 2) Flash drive, 15.36 TB, flash tier 2, self-encrypting HB51 01ML228 HB52, HB53
1 (Figure 2) Flash drive, 15.36 TB, flash tier 2, self-encrypting, category 2 (note 2) HB52 01NN834 HB53
1 (Figure 2) Flash drive, 15.36 TB, flash tier 2, self-encrypting, category 3 (note 2) HB53 01NN838 None
Notes:
  1. Important, read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, check whether the parts-ordering system has a conditional substitute for DS8000® series. CCINs that are in parentheses are reported by earlier levels of the LIC bundle.
  2. For DDMs and SSDs with multiple CCINs for same size and speed, replace with a different CCIN only if that CCIN appears in the column Allowable substitute CCINs.
Figure 3. Storage enclosure parts, rear (SAS flash enclosure, 24 drive slots)
Storage enclosure locations (rear view) (SAS flash enclosure, 24 drive slots)
Table 3. Storage enclosure parts, rear (SAS flash enclosure, 24 drive slots)
Index Part name CCIN
(note 1)		 Part number
3 (Figure 2)
P1-C1, P1-C2 (Figure 3)		 Enclosure services manager (ESM)   01LT125
4 (Figure 2)
P1-E1, P1-E2 (Figure 3)		 Storage enclosure power supply   01AC404
Notes:
  1. Important, read this entire paragraph as there are exceptions to what part number to order. The custom card identification number (CCIN) identifies the physical features and logical behavior of a part. If two parts appear physically identical but have different CCINs, they are not interchangeable unless stated elsewhere in the maintenance package or by the next level of support. If two parts have different part numbers and yet have the same CCIN, they are interchangeable. When you order a part number (P/N) reported in a serviceable event or call home record, check whether the parts-ordering system has a conditional substitute for DS8000 series. CCINs that are in parentheses are reported by earlier levels of the LIC bundle.
Table 4. Serial attached SCSI (SAS) cables (Models 98x)
Index Part name CCIN Part number
N/A Cable, serial attached SCSI (SAS), 1.2 meter FRU kit1
Model 98x (not Model 983)		 N/A 98Y9791
N/A Cable, serial attached SCSI (SAS), 1.2 meter FRU kit1
Model 983 only		 N/A 02AN276
N/A Cable, serial attached SCSI (SAS), optical, 4.5 meter FRU kit1 N/A 02AM450
N/A Cable, serial attached SCSI (SAS), optical, 25 meter FRU kit1 N/A 02AM451
Notes:
  1. Kit includes cable and location labels.
