Section-28, Cable bundle 2, Connecting to the lower CEC enclosure (XC2)

Procedure

  1. Locate the cable group for the upper CEC (XC2).
  2. Connect the CEC enclosure (XC2, lower) cables to the CEC enclosure. See Figure 1.

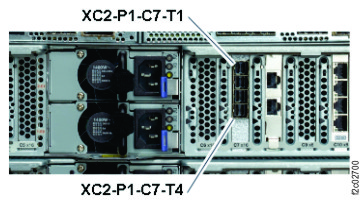

    Figure 1. CEC enclosure location codes (rear view) (Model 983)
    CEC enclosure location codes (rear view) (Model 983)
  3. Fasten the cables to the cable tie bar.
    1. Locate the two blue tape bands on the cable tie bar that mark where the blue hook-and-loop ties go.
    2. Undo the blue ties and wrap them around all the cables.
    3. Neatly route the cables and then fasten them to the cable tie bar reusing the blue ties.
