Section-41, Cable bundle 4, connecting to the lower CEC enclosure (XC2) (optional feature)

Procedure

  1. Locate the cable group with bubble pack labeled CEC enclosure (XC2, lower).
  2. Connect the cables to the XC2-P1-C7-T2 and T3 connectors.

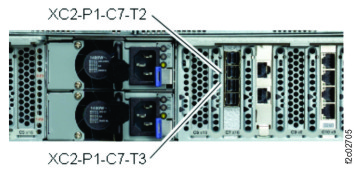

    Figure 1. Lower XC2 CEC enclosure location codes (rear view) (Model 983)
    CEC enclosure location codes (rear view) (Model 983)
  3. Use the blue hook-and-loop fasteners to tie cable bundle 4 to the cable tie bar at the two white bands on the bar. See Figure 1.
