Section-7, Installing the lower UPS (E62) on the 4U Rails

Procedure

  1. Locate the UPS (E62, lower) in Box 2 of 10. The screws to secure it and the UPS cable tie bar are in Box 1 of 10.
  2. Ensure the location label on the top front of the UPS enclosure is E62 (lower). See Figure 1.
    Figure 1. Enclosure labels (example)
    Enclosure labels (example)

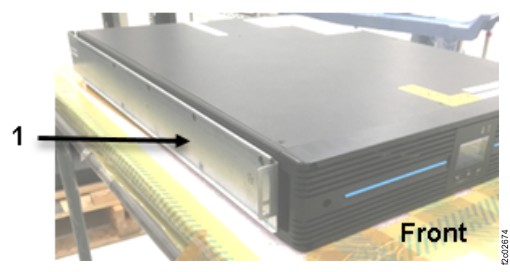

  3. The left and right 1U side rails  1  are pre-installed on the UPS. See Figure 2.
    Figure 2. UPS 1U side rail preinstalled, left
    Flash enclosure rail screw holes, left front (rear similar)
  4. Install the UPS on the lower half of the rack 4U rails. Slide it fully in and secure the front with one screw at each side. See Figure 3.
    Figure 3. UPS rail (front left)
    UPS rail (front left)
  5. At the rear lower left, install the mainline power cable retention bracket with one screw in the lower hole. See Figure 4.
    Figure 4. UPS mainline power cable retention bracket (rear)
    UPS mainline power cable retention bracket (rear)
  6. At the rear lower right, install a screw in the lower hole. See Figure 5.
    Figure 5. UPS lower right screw
    UPS lower right screw
  7. Install the lower UPS power cable tie bar Callout label 2 using one screw Callout label 1 at each end. See Figure 6 and Figure 7.
    Figure 6. UPS power cable tie bar
    UPS power cable tie bar
    Figure 7. UPS power cable tie bars (rear)
    UPS power cable tie bars (rear)
