Section-2, Overview
- The DS8882F (Model 983) was mechanically and logically configured in manufacturing. All the components were uniquely labeled for field assembly. A hardcopy inventory list was included in the ship group.
- The hardware components must be properly assembled and connected to prevent installation errors.
- The installation uses two documents.
- Assembling a Storage Facility (Model 983) in a Customer Rack. Mechanical assembly only with no power connected.
- Installing a Storage Facility (Model 983). Connecting customer power, powering on, logically installing and configuring.

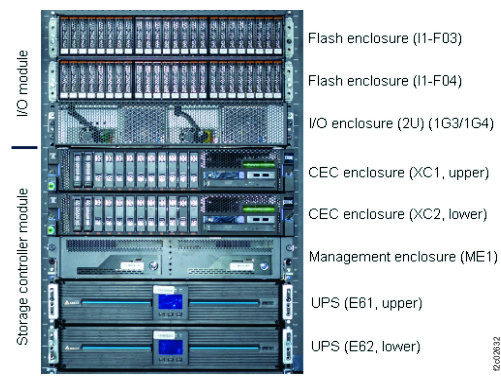

- This system requires an unused 16U rack space. The placement of the hardware in that space is fixed. See Figure 1 and Table 1.
- If there is not already an available keyboard display to connect to the management consoles, the customer has ordered the optional keyboard/display feature, which is included in the ship group.
| Rack Units | Rack Units per enclosure | Enclosure type | Location Code | Ship Group Box | Installation Order |
|---|---|---|---|---|---|
|
16U |
2U | Flash enclosure | I1-F03 | 9 of 10 | 8 |
| 2U | Flash enclosure | I1-F04 | 8 of 10 | 7 | |
| 2U | I/O enclosure | I1-G3/G4 | 7 of10 | 6 | |
| 2U | CEC enclosure | XC1(upper) | 6 of 10 | 5 | |
| 2U | CEC enclosure | XC2 (lower) | 5 of 10 | 4 | |
| 2U | Management enclosure | ME1 | 4 of 10 | 3 | |
| 2U | UPS | E61 (upper) | 3 of 10 | 2 | |
| 2U | UPS | E62 (lower) | 2 of 10 | 1 |
