CEC enclosure location codes (Models 941, 951)

The list below summarizes the CEC enclosure assembly with figures and related tables that contain location code information. For part numbers, see CEC enclosure part numbers, Model 941 or CEC enclosure part numbers, Model 951.
Table 1. Summary of CEC enclosure assembly locations
Assembly Reference
CEC enclosure front locations Figure 1
CEC enclosure rear locations Figure 2
CEC enclosure memory DIMM locations Figure 4

CEC enclosure front overview

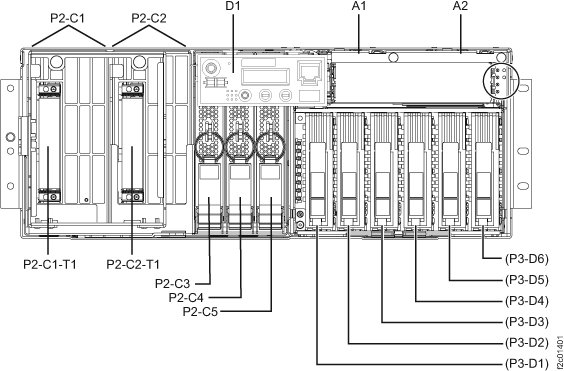

Figure 1. CEC enclosure locations (front)
CEC enclosure locations (front view)
Table 2. Location codes for the CEC enclosure (front)
Location code Part name Connector
U789D.001.sssssss-A1 CEC enclosure fan assembly
U789D.001.sssssss-A2 CEC enclosure fan assembly
U789D.001.sssssss-D1 CEC enclosure control panel assembly
U789D.001.sssssss-P2 CEC enclosure system processor backplane assembly
U789D.001.sssssss-P2-C1 CEC enclosure system processor card
U789D.001.sssssss-P2-C1-T1   SMP V-bus
U789D.001.sssssss-P2-C1-Cx
 (x = slot 1-12, top to bottom;
see Figure 4)		 CEC enclosure memory DIMM
U789D.001.sssssss-P2-C2 CEC enclosure system processor card
U789D.001.sssssss-P2-C2-T1   SMP V-bus
U789D.001.sssssss-P2-C2-Cx
(x = slot 1-12, top to bottom;
see Figure 4)		 CEC enclosure memory DIMM
U789D.001.sssssss-P2-C3 CEC enclosure system processor voltage card
U789D.001.sssssss-P2-C4 CEC enclosure system processor voltage card
U789D.001.sssssss-P2-C5 CEC enclosure system processor voltage card
U789D.001.sssssss-P3 CEC disk drive backplane assembly
U789D.001.sssssss-P3-D1 CEC enclosure disk drive
U789D.001.sssssss-P3-D2 CEC enclosure disk drive
U789D.001.sssssss-P3-D3 CEC enclosure disk drive
U789D.001.sssssss-P3-D4 CEC enclosure disk drive
U789D.001.sssssss-P3-D5 CEC enclosure disk drive
U789D.001.sssssss-P3-D6 CEC enclosure disk drive

CEC enclosure rear overview

Figure 2. Location codes for the CEC enclosure (rear view) (Models 941, 951)
Location codes for the CEC enclosure (rear view)

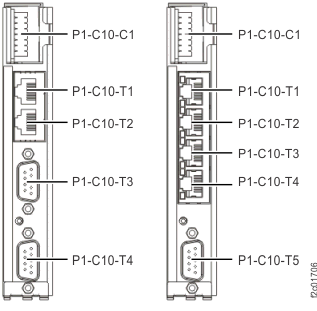

Figure 3. VPD pass-through cards with two Ethernet ports (left) and four Ethernet ports (right)
VPD pass-through cards with two Ethernet ports (left) and four Ethernet ports (right)
Table 3. Location codes for the CEC enclosure (rear) - except PCI bridge sets
Location code Part name Connector
U789D.001.sssssss-E1 CEC enclosure power supply
U789D.001.sssssss-E2 CEC enclosure power supply
U789D.001.sssssss-P1 CEC enclosure I/O backplane assembly
U789D.001.sssssss-P1-C1 CEC enclosure PCIe single-port card
U789D.001.sssssss-P1-C1-T1   PCIe
U789D.001.sssssss-P1-C2 CEC enclosure PCIe single-port card
U789D.001.sssssss-P1-C2-T1   PCIe
U789D.001.sssssss-P1-C3 CEC enclosure PCIe single-port card
U789D.001.sssssss-P1-C3-T1   PCIe
U789D.001.sssssss-P1-C5 CEC enclosure PCIe single-port card (slot 5)
U789D.001.sssssss-P1-C5-T1   PCIe
U789D.001.sssssss-P1-C8 CEC enclosure RIO card
U789D.001.sssssss-P1-C8-T1   RIO
U789D.001.sssssss-P1-C8-T2   RIO
U789D.001.sssssss-P1-C9 CEC enclosure PCIe four-port card
U789D.001.sssssss-P1-C9-T1   PCIe
U789D.001.sssssss-P1-C9-T2   PCIe
U789D.001.sssssss-P1-C9-T3   PCIe
U789D.001.sssssss-P1-C9-T4   PCIe
U789D.001.sssssss-P1-C10 CEC enclosure VPD pass-through card
U789D.001.sssssss-P1-C10-T1 Integrated 1Gb Ethernet Ethernet
U789D.001.sssssss-P1-C10-T2 Integrated 1Gb Ethernet Ethernet
U789D.001.sssssss-P1-C10-T3 (Ethernet or serial, per Figure 3) Not used
U789D.001.sssssss-P1-C10-T4 (Ethernet or serial, per Figure 3) Not used
U789D.001.sssssss-P1-C10-T5 (serial, if present, per Figure 3) Not used
U789D.001.sssssss-P1-C10-C1 CEC enclosure VPD card
U789D.001.ssssss-P1-C11 CEC enclosure service processor card
U789D.001.ssssss-P1-C11-E1 CEC enclosure service processor card time-of-day battery
U789D.001.ssssss-P1-C11-T1   SPCN
U789D.001.ssssss-P1-C11-T2 SPCN
U789D.001.ssssss-P1-C11-T3 Ethernet
U789D.001.ssssss-P1-C11-T4 Ethernet
U789D.001.ssssss-P1-I2C   I2C to RPC cards
U789D.001.sssssss-P1-T1   USB1
U789D.001.sssssss-P1-T2   USB2

CEC enclosure memory DIMM location codes

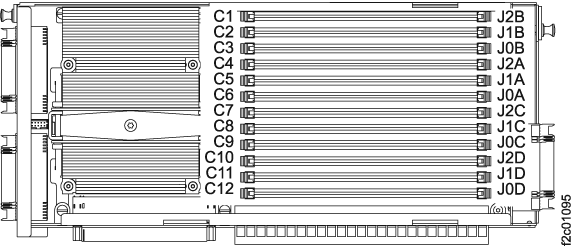

Figure 4. Memory module locations on the processor card (Un-P2-Cx) (Models 941, 951)
CEC memory DIMM card locations
Memory module location is P2-Cx-Cy where:
x = System processor card slot 1 or slot 2
y = Memory DIMM slot 1 thru 12 as shown
Notes:
  1. First quad of memory modules is plugged into memory module slots P2-Cx-C3, P2-Cx-C6, P2-Cx-C9, and P2-Cx-C12.
  2. Second quad of memory modules is plugged into memory module slots P2-Cx-C2, P2-Cx-C5, P2-Cx-C8, and P2-Cx-C11.
  3. Third quad of memory modules is plugged into memory module slots P2-Cx-C1, P2-Cx-C4, P2-Cx-C7, and P2-Cx-C10.
