Management enclosure cables (Model 983)

Table 1. Start here, Management enclosure location codes (Model 983)
I/O enclosure part name Figure Table
Cables, Ethernet Refer to Ethernet cables (Model 983). None
Cables, not Ethernet Figure 2, Figure 3, Figure 4 Table 2, Table 3, Table 4
Ethernet switch Figure 1 None
Fan assembly Figure 3 Table 3
LED indicator panel Figure 2 Table 2
Local remote switch card Figure 2 Table 2
Management console (MC, HMC) Figure 3 Table 3
Management enclosure power supply Figure 3, Figure 4 Table 3, Table 4
RPC card Figure 2, Figure 4 Table 2, Table 4
Figure 1. Management enclosure locations (Model 983)
Management enclosure locations
Figure 2. Local remote switch card to RPC cards and Operator panel LEDs cable
Local remote switch card to RPC cards and Operator panel LEDs cable
Table 2. Local remote switch card to RPC cards and operator panel LEDs cables
From local remote switch card To
C6-J2 C1-J3 (RPC card)
C6-J3 C2-J3 (RPC card)
C6-J4 Operator panel LEDs

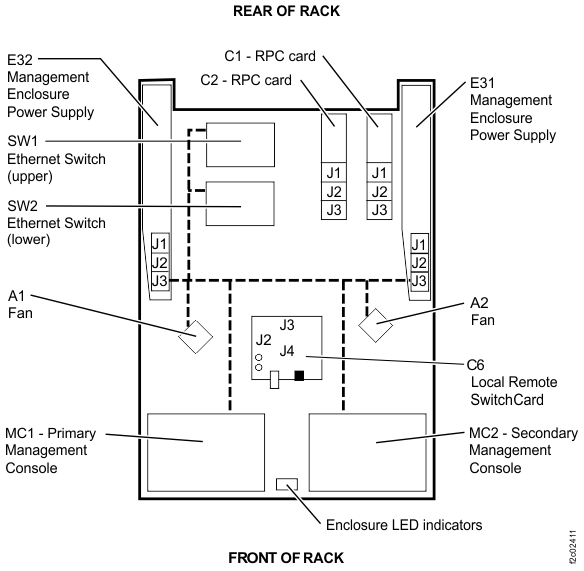

Figure 3. Management enclosure 12V power distribution cable
Management enclosure 12V power distribution cable
Table 3. Management enclosure 12V power distribution cable
From management enclosure power supply To
E31-J3
E32-J3		 A1 and A2 (Fan assembly)
MC1 and MC2 (Management console)
SW1 and SW2 (Ethernet switch)
Figure 4. Management enclosure power supplies to RPC card cables
Management enclosure power supplies to RPC card cables
Table 4. Management enclosure power supplies to RPC card cables
From management enclosure power supply To
E31-J1
E32-J1		 C1-J2 (RPC card)
E31-J2
E32-J2 		C2-J2 (RPC card)
