Exchange the PCIe cable, CEC enclosure, Models 98x

Before you begin

Icon for electrostatic discharge wrist strap Use approved ESD procedures to prevent damage.

Attention:

This procedure is not a stand-alone procedure. Customer disruption and damage to the hardware might occur when microcode and power boundaries are not in the proper conditions for this service action.
If a serviceable event FRU repair directed you to this procedure, the microcode and power boundaries are already set.
If a serviceable event FRU repair did not direct you to this procedure, see MAP1230 Replace a FRU without using a serviceable event.

Notes:

All the cables and FRUs to be removed must be uniquely identified so they can be reinstalled correctly.
If an installed earthquake resistance kit prevents you from accessing this FRU, refer to MAP1600.

Both ends of the PCIe cable use the same connector.

Remove the PCIe cable

Procedure

If you located the PCIe cable to be replaced, go to step 4.
If you did not locate the PCIe cable to be replaced, go to the next step.
To locate this FRU, take one of the following actions and then return here and continue to replace the FRU:
- If this FRU has a FRU identify indicator, use the FRU identify indicator, which is listed in MAP1240 Locating FRUs by using identify indicators. If not, use the location code.
  Note: There might be cases where the FRU failure or fencing conditions prevent the FRU LED indicator from being lit even if the FRU has power.
- Use the location code, which is listed in MAP1245 Finding FRUs by using location codes.
- If there is no FRU identify indicator or location code, you were sent here by an isolation MAP or symbolic FRU procedure. Use the information in that procedure and the figures in this procedure to locate the proper part to exchange.
Most, but not all, FRUs have identify indicators. Use the flashing amber or solid blue FRU identify indicators to ensure that you are working on the correct enclosure or FRU.
- The light path identify LEDs are a hierarchy of LEDs that can identify the rack, enclosure, FRU, and even the FRU connector to which a cable is connected.
- For more information, refer to MAP1240 Locating FRUs by using identify indicators.

Remove the PCIe cable. Each PCIe cable goes between a CEC enclosure and an I/O enclosure.
Gently pull on the release handle and then unplug the cable.
Either end of the cable can be unplugged first.

Figure 1 (Models 981, 985, 986), Figure 2 (Models 980, 984), and Figure 3 (Models 982, 988) show the location codes at the CEC enclosure end of the cable.
Figure 4 shows the location codes at the I/O enclosure end of the cable.
Figure 5 shows the location codes of the CEC and I/O enclosures in Rack-1 and Rack-2.
Table 1, Table 2, Table 3, Table 4, Table 5, and Table 6 show the PCIe cable connections.

Note: The PCIe cable can be "hot-plugged." The FRU the cable connects to, at both ends, can stay powered on. However, the FRU on one end of the cable is quiesced and placed in service mode by the Licensed Internal Code before you are sent to this procedure.

Figure 1. CEC enclosure location codes (rear view) (Models 981, 985, 986)

CEC enclosure location codes (rear view) (Model 982) — Figure 3. CEC enclosure location codes (rear view) (Models 982, 988)

I/O enclosure locations (rear) (models 98x) — Figure 4. I/O enclosure locations (rear) (models 98x, 8xE)

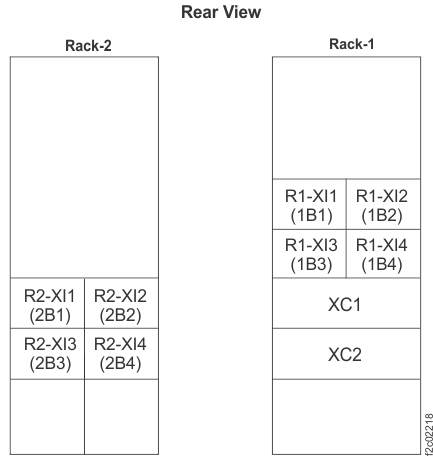

Figure 5. CEC and I/O enclosure location codes, Rack-1 and Rack-2

Table 1. PCIe cable connections (Rack 1 I/O enclosures), Models 980, 984.
Note: For Model 984 all-flash, see Table 3.
From Rack-1 CEC R1-XC1	To Rack-1 I/O Enclosure
R1-XC1-P1-C7-T1	(1B3) R1-XI3-P1-C7-T1
R1-XC1-P1-C7-T2	(1B4) R1-XI4-P1-C7-T1
From Rack-1 CEC R1-XC2	To Rack-1 I/O Enclosure
R1-XC2-P1-C7-T1	(1B3) R1-XI3-P1-C7-T2
R1-XC2-P1-C7-T2	(1B4) R1-XI4-P1-C7-T2

Table 2. PCIe cable connections (Rack 2 I/O enclosures), Models 980, 984, 98B, 84E
From Rack-1 CEC R1-XC1	To Rack-2 I/O Enclosure
R1-XC1-P1-C6-T1	(2B3) R2-XI3-P1-C7-T1
R1-XC1-P1-C6-T2	(2B4) R2-XI4-P1-C7-T1
From Rack-1 CEC R1-XC2	To Rack-2 I/O Enclosure
R1-XC2-P1-C6-T1	(2B3) R2-XI3-P1-C7-T2
R1-XC2-P1-C6-T2	(2B4) R2-XI4-P1-C7-T2

Table 3. PCIe cable connections (Rack 1 I/O enclosures), Models 981, 984 (all-flash), 985, 986
From Rack-1 CEC R1-XC1	To Rack-1 I/O Enclosure
R1-XC1-P1-C6-T1	(1B1) R1-XI1-P1-C7-T1
R1-XC1-P1-C6-T2	(1B2) R1-XI2-P1-C7-T1
R1-XC1-P1-C7-T1	(1B3) R1-XI3-P1-C7-T1
R1-XC1-P1-C7-T2	(1B4) R1-XI4-P1-C7-T1
From Rack-1 CEC R1-XC2	To Rack-1 I/O Enclosure
R1-XC2-P1-C6-T1	(1B1) R1-XI1-P1-C7-T2
R1-XC2-P1-C6-T2	(1B2) R1-XI2-P1-C7-T2
R1-XC2-P1-C7-T1	(1B3) R1-XI3-P1-C7-T2
R1-XC2-P1-C7-T2	(1B4) R1-XI4-P1-C7-T2

Table 4. PCIe cable connections (Rack 2 I/O enclosures), Models 981, 985, 986, 98E, 85E, 86E
From Rack-1 CEC R1-XC1	To Rack 2 I/O Enclosure
R1-XC1-P1-C3-T1	(2B1) R2-XI1-P1-C7-T1
R1-XC1-P1-C3-T2	(2B2) R2-XI2-P1-C7-T1
R1-XC1-P1-C5-T1	(2B3) R2-XI3-P1-C7-T1
R1-XC1-P1-C5-T2	(2B4) R2-XI4-P1-C7-T1
From Rack-1 CEC R1-XC2	To Rack 2 I/O Enclosure
R1-XC2-P1-C3-T1	(2B1) R2-XI1-P1-C7-T2
R1-XC2-P1-C3-T2	(2B2) R2-XI2-P1-C7-T2
R1-XC2-P1-C5-T1	(2B3) R2-XI3-P1-C7-T2
R1-XC2-P1-C5-T2	(2B4) R2-XI4-P1-C7-T2

Table 5. PCIe cable connections (Rack 1 I/O enclosures), Models 982, 988
From Rack-1 CEC R1-XC1	To Rack 1 I/O Enclosure
R1-XC1-P1-C8-T1	(1B1) R1-XI1-P1-C7-T1
R1-XC1-P1-C8-T2	(1B2) R1-XI2-P1-C7-T1
R1-XC1-P1-C10-T1	(1B3) R1-XI3-P1-C7-T1
R1-XC1-P1-C10-T2	(1B4) R1-XI4-P1-C7-T1
From Rack-1 CEC R1-XC2	To Rack 1 I/O Enclosure
R1-XC2-P1-C8-T1	(1B1) R1-XI1-P1-C7-T2
R1-XC2-P1-C8-T2	(1B2) R1-XI2-P1-C7-T2
R1-XC2-P1-C10-T1	(1B3) R1-XI3-P1-C7-T2
R1-XC2-P1-C10-T2	(1B4) R1-XI4-P1-C7-T2

Table 6. PCIe cable connections (Rack 2 I/O enclosures), Models 982, 988, 98F, 88F
From Rack-1 CEC R1-XC1	To Rack 2 I/O Enclosure
R1-XC1-P1-C2-T1	(2B1) R2-XI1-P1-C7-T1
R1-XC1-P1-C2-T2	(2B2) R2-XI2-P1-C7-T1
R1-XC1-P1-C3-T1	(2B3) R2-XI3-P1-C7-T1
R1-XC1-P1-C3-T2	(2B4) R2-XI4-P1-C7-T1
From Rack-1 CEC R1-XC2	To Rack 2 I/O Enclosure
R1-XC2-P1-C2-T1	(2B1) R2-XI1-P1-C7-T2
R1-XC2-P1-C2-T2	(2B2) R2-XI2-P1-C7-T2
R1-XC2-P1-C3-T1	(2B3) R2-XI3-P1-C7-T2
R1-XC2-P1-C3-T2	(2B4) R2-XI4-P1-C7-T2

Note: For a point-to-point diagram, see the link that matches your configuration:

Install the PCIe cable

Procedure

Ensure that the proper location code labels are applied to each end of the new cable. If the cable is not labeled, complete steps 1.a, 1.b, and 1.c.
1. Observe the location code label on each end of the cable that has been removed.
2. Select the proper location code labels from the label sheet shipped with the new cable.
3. Apply the labels to the new cable.

  Note: The cable is not directional, and has the same connectors on each end.
Install the PCIe cable.
Exit this service information center parts exchange procedure and return to the procedure that sent you here.
