Section-38, Cable bundle 3, connecting green to upper UPS (E61) and yellow to lower UPS (E62)

Procedure

  1. Route the cable bundle 3 cable group for the UPS down the left rack rail and across the UPS rear cable tie bar.
  2. Remove the bubble pack from both cable groups.
    • The group for the upper UPS (E61) has green connectors.
    • The group for the lower UPS (E62) has yellow connectors.
  3. Route, connect, and fasten the cables with green connectors to the upper UPS.
    1. Route the cables over the rear cable tie bar (white) and over the front cable tie bar (green). See Figure 1.
    2. Connect the cables to the UPS. See Figure 2.
    3. Fasten the cables to the front cable tie bar (green) using hook-and-loop cable ties.
    Figure 1. UPS cable tie bars
    UPS cable tie bars

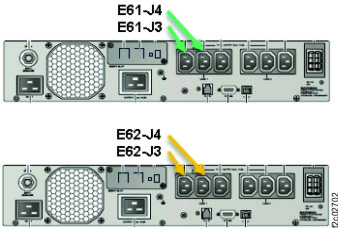

    Figure 2. Locations, UPS (rear)
    Locations, UPS (rear)
  4. Route, connect, and fasten the cables with yellow connectors to the lower UPS.
    1. Route the cables under the rear cable tie bar (white) and over the front cable tie bar (yellow). See Figure 1.
    2. Connect the cables to the UPS. See Figure 2.
    3. Fasten the cables to the front cable tie bar (yellow) using hook-and-loop cable ties.
  5. Fasten the cables to the cable tie bar using two blue hook-and-loop cable ties over the blue tape bands on the bar.
  6. Does Box 1 of 10 contain cable bundle 4?
